The Megatron SS SSCPRF2E-H1
$3908.00 Add to cart to see price

Advantage Controls Pumps, Series A

SKU: PP0-PMPSA
Price:
Add to cart to see price

PSI/GPD:
CONTROL OPTIONS:
VOLTAGE:
HEAD AND FITTINGS:
SEAT AND O-RINGS:
BALL CHECK:
CONNECTION:
Text Area:
Qty: - +
   - OR -

FOR CURRENT DISCOUNTS, SEE TERMS OF SALE TAB (LEFT).
With few exceptions, you get free shipping on orders over $100.00, lower 48 States of the USA.
We accept Visa, MasterCard, American Express, Discover, and
PayPal.

To Get Members Only Benefits, Click "Save Time On Your Next Visit" at Check Out.

Instant message me with your questions.

Two Year Factory Warranty!

We will meet or beat anyone's price on Advantage Controls equipment.

CONTACT US FOR PRICE QUOTATION, IF DIRECT PURCHASE IS INACTIVE.

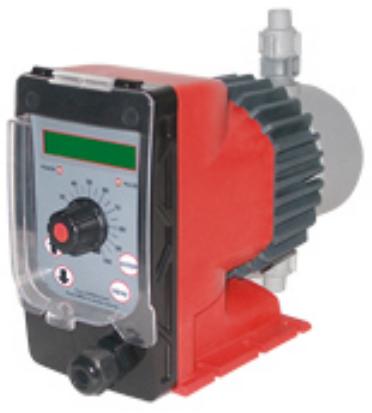

Advantage Controls Microtron Series A Pumps

The Series A includes a 1 x 16 backlit LCD, on/off indicator LED, keypad, and panel dust cover. Stroke length is manually adjustable via knob, and speed is electronically programable up to 125 Strokes per Minute.

Series A metering pumps provide reliable, flexible chemical addition for a wide variety of applications. Metering accuracy is achieved with microprocessor controlled menu adjustable speed and double ball guided checks. A rugged housing with control cover is suitable for outdoor installations. Available in outputs up to 45 GPD and 250 PSI and control features include:

  • 4-20mA Input
  • Biocide Timer
  • Pulse Timer
  • Percent Timer
  • External Stop
  • Flow Totalizer
  • Pump FloTracker
  • Loss Prime Alarm

DRIVE SELECTIONS

The pump models that you can select from the first dropdown menu are:

  • Model A145 = 45 GPD at 75 PSI
  • Model A130 = 30 GPD at 110 PSI (Default Selection)
  • Model A115 = 15 GPD at 110 PSI
  • Model A217 = 17 GPD at 250 PSI

The control options that you can select from the second dropdown menu are:

  • X = (Standard) Control (Default Selection)
  • M = 4-20 mA Input
  • T = Selectable Pulse, %, or 28-Day Biocide Timer

The voltage options that you can select from the third dropdown menu are:

  • 1 = (Standard) 120 Volt USA plug, 5.5’ long (Default Selection)
  • 2 = 240 No plug
  • 3 = 240 South American plug
  • 4 = 12 Volt DC (60 PSI max; Output not affected)
  • 5 = 240 Volt USA plug
  • 6 = 240 Volt Korean plug / 60 cycle
  • 7 = 240 Volt Australian plug

WET END SELECTIONS

The head and fitting options that you can select from the fourth dropdown menu are:

  • K = Kynar (Default Selection)
  • S = 316SS*
  • M = Kynar Head w/ SS MNPT Valves*
  • D = Kynar Degassing

* M and S options must have P connection code

The seat and O-ring options that you can select from the fifth dropdown menu are:

  • V = Viton (Default Selection)
  • F = Teflon
  • H = Hypalon

The connection options that you can select from the sixth dropdown menu are:

  • 1 = 3/8” Tubing for 75-200 psi (Default Selection)
  • 2 = 1/4” Tubing for 250 psi
  • K = Kynar suct / disch tubing
  • P = 1/4” MNPT
  • Q = 1/4” MNPT disch / 1/4” FNPT suc
  • R = 1/4” FNPT
  • U = 3/8” Black UV resistant
  • V = Clear flex 3/8” suct tubing

The ball check options that you can select from the seventh dropdown menu are:

  • C = Ceramic (Default Selection)
  • D = Ceramic (single on discharge)
  • S = Stainless

OTHER OPTIONS

We are thinking that the following is getting a little too exotic and complicated for auto selection and are best addressed as a custom order. You can select and contact us for pricing on up to three of the following:

  • 4 = Blue Housing
  • 5 = Green Housing
  • 6 = Conformal Coating
  • E = External Stop
  • F2 = Paddlewheel Flow Meter, Kynar construction
  • F3 = Paddlewheel Flow Meter, input only, no sensor
  • H = 3-Wire Input for Paddlewheel Sensor (5 VDC)
  • P ON/OFF Power Switch
  • R = Remove Stroke Adjust
  • S = 3-Function Valve (25 lbs load, anti-siphon & check)
  • V = Pulse Output
  • W = Dry Contact with Pump On
  • 12 = Momentary Toggle Switch for WM Input

If you need further customization than what you see here, Contact Us.

Chemical Compatibility
When building the liquid end portion of a pump model it is critical that the materials selected are compatible with the product to be pumped. Listed below are some common chemicals and recommended liquid end codes. Example: Sodium Hypochlorite (chlorine) A130X1-KVCV.

Chemical Code
ACETIC ACID, 5-10% KHC
ALUMINUM SULFATE ‘alum’ KHC
AMINES, 0 - 35% KFC
AMINES, > 40% SFS
AMMONIA, 10% KHC
BROMINE KFC
CALCIUM HYPOCHLORITE KVC
DBNPA KFC
ETHYLENE GLYCOL KFC
FERRIC CHLORIDE KFC
FERRIC SULFATE KFC
GLUTARALDEHYDE KFC
HYDROCHLORIC ACID, 0 - 37% KFC
HYDROGEN PEROXIDE, 0 - 30% KVC
INHIBITING PHOSPHONATES KFC
ISOTHIAZOLINE KFC
NITRIC ACID, 0 - 20% KVC
PHOSPHORIC ACID, 0 - 100% KFC
POTASSIUM CHLORIDE KFC
SODIUM BI-CARBONATE ‘soda ash’ KFC
SODIUM BI-SULFATE KFC
SODIUM BI-SULFITE KFC
SODIUM BROMIDE KFC
SODIUM CARBONATE KFC
SODIUM HYDROXIDE, ‘caustic’, 0 - 50% KHC
SODIUM HYPOCHLORITE KVC
SODIUM NITRATE KFC
SODIUM SILICATE KHC
SODIUM SULFATE KHC
SODIUM SULFIDE KHC
SULFURIC ACID, 10 - 75% KFC
SULFURIC ACID, 95 - 100% KFC

MicroTron Series A metering pumps provide reliable, flexible chemical addition for a wide variety of applications. Metering accuracy is achieved with microprocessor controlled menu adjustable speed and double ball guided checks. A rugged thermoplastic NEMA 4X style housing allows for outdoor installations. Series A pumps are available in outputs up to 55 GPD and 250 PSI. The manual stroke length and menu speed adjustment provides the widest turn down capability.

Key Features: • Dual Output Adjustment • NEMA 4X Style Enclosure • LED Backlit Display • Optional Control Functions • LED Indicating Lights • Guided Double Ball Checks • Priming / Degassing Valve • Splash Cover Over Controls

There are many other options available. Contact us  with your unique requirements.

Prices for the Continental 48 states of the USA only.
