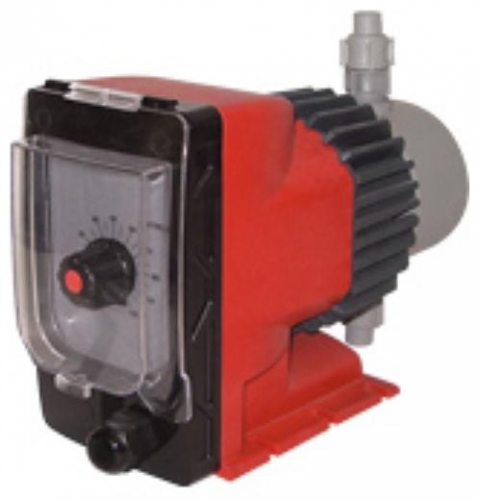

Advantage Controls Microtron Series C Pumps

The Series C pumps feature adjustable stroke length with fixed speed. 10:1 turndown.

Series C metering pumps provide reliable, economical chemical addition for a wide variety of applications. Metering accuracy is achieved with microprocessor controlled preset speed and double ball guided checks. A rugged housing with control cover is suitable for outdoor installations. Available in outputs up to 30 GPD and 250 PSI.

  • Built-in Priming Valve
  • Guided Double Ball Checks
  • Circuit Protection
  • Fixed Speed
  • Low Cost

DRIVE SELECTIONS

The pump models that you can select from the first dropdown menu are:

  • Model C130 - 30 GPD at 110 PSI
  • Model C120 - 20 GPD at 110 PSI
  • Model C115 - 15 GPD at 110 PSI
  • Model C110 - 10 GPD at 110 PSI
  • Model C105 - 5 GPD at 110 PSI
  • Model C217 - 17 GPD at 250 PSI
  • Model C215 - 15 GPD at 250 PSI
  • Model C210 - 10 GPD at 250 PSI
  • Model C205 - 5 GPD at 250 PSI
  • Model C202 - 2 GPD at 250 PSI

The control options that you can select from the second dropdown menu are:

  • X = (Standard) Control (Default Selection)
  • E = External Pace
  • F = Hall Effect flow meter input (divides by 9)

The voltage options that you can select from the third dropdown menu are:

  • 1 = (Standard) 120 Volt USA plug, 5.5’ long (Default Selection)
  • 2 = 240 No plug
  • 3 = 240 South American plug
  • 4 = 12 Volt DC (60 PSI max; Output not affected)
  • 5 = 240 Volt USA plug
  • 6 = 240 Volt Korean plug / 60 cycle
  • 7 = 240 Volt Australian plug

WET END SELECTIONS

The head and fitting options that you can select from the fourth dropdown menu are:

  • K = Kynar (Default Selection)
  • S = 316SS*
  • M = Kynar Head w/ SS MNPT Valves*
  • D = Kynar Degassing

* M and S options must have P connection code

The seat and O-ring options that you can select from the fifth dropdown menu are:

  • V = Viton (Default Selection)
  • F = Teflon
  • H = Hypalon

The connection options that you can select from the sixth dropdown menu are:

  • 1 = 3/8” Tubing for 75-200 psi (Default Selection)
  • 2 = 1/4” Tubing for 250 psi
  • K = Kynar suct / disch tubing
  • P = 1/4” MNPT
  • Q = 1/4” MNPT disch / 1/4” FNPT suc
  • R = 1/4” FNPT
  • U = 3/8” Black UV resistant
  • V = Clear flex 3/8” suct tubing

The ball check options that you can select from the seventh dropdown menu are:

  • C = Ceramic (Default Selection)
  • D = Ceramic (single on discharge)
  • S = Stainless

OTHER OPTIONS

We are thinking that the following is getting a little too exotic and complicated for auto selection and are best addressed as a custom order. You can select and contact us for pricing on up to three of the following:

  • 4 = Blue Housing
  • 5 = Green Housing
  • 6 = Conformal Coating
  • C = Dust Cover (Series C only)
  • E = External Stop
  • F2 = Paddlewheel Flow Meter, Kynar construction
  • P ON/OFF Power Switch
  • R = Remove Stroke Adjust
  • S = 3-Function Valve (25 lbs load, anti-siphon & check)

If you need further customization than what you see here, Contact Us.

Chemical Compatibility
When building the liquid end portion of a pump model it is critical that the materials selected are compatible with the product to be pumped. Listed below are some common chemicals and recommended liquid end codes. Example: Sodium Hypochlorite (chlorine) A130X1-KVCV.

Chemical Code
ACETIC ACID, 5-10% KHC
ALUMINUM SULFATE ‘alum’ KHC
AMINES, 0 - 35% KFC
AMINES, > 40% SFS
AMMONIA, 10% KHC
BROMINE KFC
CALCIUM HYPOCHLORITE KVC
DBNPA KFC
ETHYLENE GLYCOL KFC
FERRIC CHLORIDE KFC
FERRIC SULFATE KFC
GLUTARALDEHYDE KFC
HYDROCHLORIC ACID, 0 - 37% KFC
HYDROGEN PEROXIDE, 0 - 30% KVC
INHIBITING PHOSPHONATES KFC
ISOTHIAZOLINE KFC
NITRIC ACID, 0 - 20% KVC
PHOSPHORIC ACID, 0 - 100% KFC
POTASSIUM CHLORIDE KFC
SODIUM BI-CARBONATE ‘soda ash’ KFC
SODIUM BI-SULFATE KFC
SODIUM BI-SULFITE KFC
SODIUM BROMIDE KFC
SODIUM CARBONATE KFC
SODIUM HYDROXIDE, ‘caustic’, 0 - 50% KHC
SODIUM HYPOCHLORITE KVC
SODIUM NITRATE KFC
SODIUM SILICATE KHC
SODIUM SULFATE KHC
SODIUM SULFIDE KHC
SULFURIC ACID, 10 - 75% KFC
SULFURIC ACID, 95 - 100% KFC

MicroTron Series C metering pumps provide reliable, economical chemical addition for a wide variety of applications. Metering accuracy is achieved with microprocessor controlled preset speed and double ball guided checks. A rugged thermoplastic NEMA 4X housing allows for outdoor installations. The Series C pumps are available in outputs up to 30 GPD and 250 PSIG. The manual stroke length adjustment provides a simple turn down on all models.

Key Features: • Single Output Adjustment • NEMA 4X Style Enclosure • Guided Double Ball Checks • Circuit Protection • Thermal Overload Protection • Priming Valve Standard • Microprocessor Fixed Speed

There are many other options available. Contact us  with your unique requirements.
