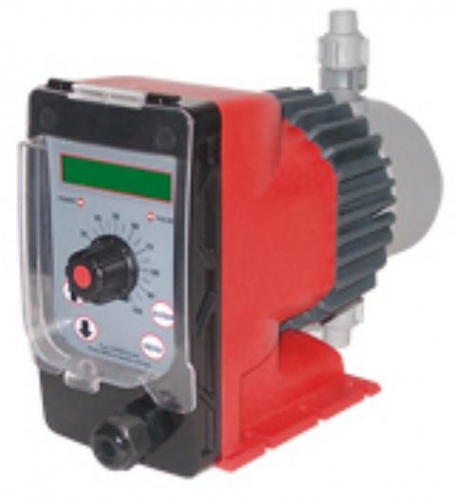

Advantage Controls Micrtron RO Pumps

The Series R Controller/pump combination units come standard with a 1 x 16 backlit LCD readout, on/off light, stroke indicator light, 5 amp fuzed relay output, and panel dust cover. Stroke length is manually adjustable via knob, and speed is electronically programable up to 125 Strokes per Minute.

MicroTron Series R pumps combine chemical metering and a control relay output function in one simple unit.

The Model RO pump controller combination provides:

• ORP Control with alarm relay output.

Model R pumps may be ordered in the following configurations: • Conductivity Control • Conductivity Control with Feed Timer • Conductivity Control with Biocide Timer • Dual Pulse Timers • Dual 28-day Biocide Timers • Dual Sequential Percent Timers • pH Control • ORP Control

Key Features: • Microprocessor Controlled • Control Relay Output • NEMA 4X Style Enclosure • Splash Cover Over Controls • Guided Double Ball Checks • LED Indicating Lights • LCD Backlit Display • Widest Turn Down Capability • Thermal Overload Protection • Priming Valve Standard

DRIVE SELECTIONS

The pump models that you can select from the first dropdown menu are:

• Model RO30 - 30 GPD at 110 PSI
• Model RO15 - 15 GPD at 150 PSI
• Model RO17 - 17 GPD at 250 PSI

The control options that you can select from the second dropdown menu are:

• X = (Standard) Control (Default Selection)
• D = Auto Stop Input with 8’Cord
• E = External Pace
• G = Flow Switch only with 8’ Cord
• H = Flow Switch Unassembled

The voltage options that you can select from the third dropdown menu are:

• 1 = (Standard) 120 Volt USA plug (Default Selection)
• 2 = 240 No plug
• 3 = 240 Specified plug
• L = 120 Volt USA Plug with no Control Relay or Pigtail

WET END SELECTIONS

The head and fitting options that you can select from the fourth dropdown menu are:

• K = Kynar (Default Selection)
• S = 316SS*
• M = Kynar Head w/ SS MNPT Valves*
• D = Kynar Degassing

* M and S options must have P connection code

The seat and O-ring options that you can select from the fifth dropdown menu are:

• V = Viton (Default Selection)
• F = Teflon
• H = Hypalon

The connection options that you can select from the sixth dropdown menu are:

• 1 = 3/8” Tubing for 75-200 psi (Default Selection)
• 2 = 1/4” Tubing for 250 psi
• K = Kynar suct / disch tubing
• P = 1/4” MNPT
• Q = 1/4” MNPT disch / 1/4” FNPT suc
• R = 1/4” FNPT
• U = 3/8” Black UV resistant
• V = Clear flex 3/8” suct tubing

The ball check options that you can select from the seventh dropdown menu are:

• C = Ceramic (Default Selection)
• D = Ceramic (single on discharge)
• S = Stainless

OTHER OPTIONS

We are thinking that the following is getting a little too exotic and complicated for auto selection and are best addressed as a custom order. You can select and contact us for pricing on up to three of the following:

• 4 = Blue Housing
• 5 = Green Housing
• 6 = Conformal Coating
• F2 = Paddlewheel Flow Meter, Kynar construction
• F3 = Paddlewheel Flow Meter, input only, no sensor
• H = 3-Wire Input for Paddlewheel Sensor (5 VDC)
• N = 4-20 mA Output Isolated (requires power)
• P ON/OFF Power Switch
• R = Remove Stroke Adjust
• S = 3-Function Valve (25 lbs load, anti-siphon & check)
• 03 = Tank Mount ORP Probe
• 12 = Momentary Toggle Switch for WM Input

If you need further customization than what you see here, Contact Us.

Chemical Compatibility
When building the liquid end portion of a pump model it is critical that the materials selected are compatible with the product to be pumped. Listed below are some common chemicals and recommended liquid end codes. Example: Sodium Hypochlorite (chlorine) A130X1-KVCV.
