The Megatron XS XSPRE
$3516.00 Add to cart to see price

Advantage Controls Pumps, Series RP

SKU: PP0-PMPRP
Price:
Add to cart to see price

PSI/GPD:
CONTROL OPTIONS:
VOLTAGE:
HEAD AND FITTINGS:
SEAT AND O-RINGS:
BALL CHECK:
CONNECTION:
Text Area:
Qty: - +
   - OR -
*Note: This product is not eligible for rewards points earning.
*Note: This product cannot be redeemed using rewards points.

FOR CURRENT DISCOUNTS, SEE TERMS OF SALE TAB (LEFT).
With few exceptions, you get free shipping on orders over $100.00, lower 48 States of the USA.
We accept Visa, MasterCard, American Express, Discover, and
PayPal.

To Get Members Only Benefits, Click "Save Time On Your Next Visit" at Check Out.

Instant message me with your questions.

Two Year Factory Warranty!

We will meet or beat anyone's price on Advantage Controls equipment.

ADVANTAGE CONTROLS IS NO LONGER MAKING THESE.

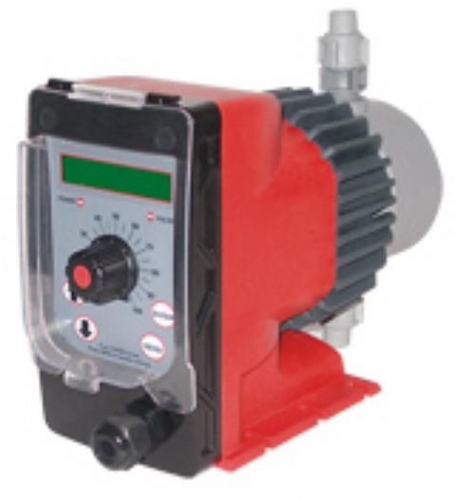

Advantage Controls Microtron RP Pumps

The Series R Controller/pump combination units come standard with a 1 x 16 backlit LCD readout, on/off light, stroke indicator light, 5 amp fuzed relay output, and panel dust cover. Stroke length is manually adjustable via knob, and speed is electronically programable up to 125 Strokes per Minute.

MicroTron Series R pumps combine chemical metering and a control relay output function in one simple unit.

The Model RP pump controller combination provides:

  • pH Control with alarm relay output.

Model R pumps may be ordered in the following configurations: • Conductivity Control • Conductivity Control with Feed Timer • Conductivity Control with Biocide Timer • Dual Pulse Timers • Dual 28-day Biocide Timers • Dual Sequential Percent Timers • pH Control • ORP Control

Key Features: • Microprocessor Controlled • Control Relay Output • NEMA 4X Style Enclosure • Splash Cover Over Controls • Guided Double Ball Checks • LED Indicating Lights • LCD Backlit Display • Widest Turn Down Capability • Thermal Overload Protection • Priming Valve Standard

DRIVE SELECTIONS

The pump models that you can select from the first dropdown menu are:

  • Model RP30 - 30 GPD at 110 PSI
  • Model RP15 - 15 GPD at 150 PSI
  • Model RP17 - 17 GPD at 250 PSI

The control options that you can select from the second dropdown menu are:

  • X = (Standard) Control (Default Selection)
  • D = Auto Stop Input with 8’Cord
  • E = External Pace
  • G = Flow Switch only with 8’ Cord
  • H = Flow Switch Unassembled

The voltage options that you can select from the third dropdown menu are:

  • 1 = (Standard) 120 Volt USA plug (Default Selection)
  • 2 = 240 No plug
  • 3 = 240 Specified plug
  • L = 120 Volt USA Plug with no Control Relay or Pigtail

WET END SELECTIONS

The head and fitting options that you can select from the fourth dropdown menu are:

  • K = Kynar (Default Selection)
  • S = 316SS*
  • M = Kynar Head w/ SS MNPT Valves*

* M and S options must have P connection code

The seat and O-ring options that you can select from the fifth dropdown menu are:

  • V = Viton (Default Selection)
  • F = Teflon
  • H = Hypalon

The connection options that you can select from the sixth dropdown menu are:

  • 1 = 3/8” Tubing for 75-200 psi (Default Selection)
  • 2 = 1/4” Tubing for 250 psi
  • K = Kynar suct / disch tubing
  • P = 1/4” MNPT
  • Q = 1/4” MNPT disch / 1/4” FNPT suc
  • R = 1/4” FNPT
  • U = 3/8” Black UV resistant
  • V = Clear flex 3/8” suct tubing

The ball check options that you can select from the seventh dropdown menu are:

  • C = Ceramic (Default Selection)
  • D = Ceramic (single on discharge)
  • S = Stainless

OTHER OPTIONS

We are thinking that the following is getting a little too exotic and complicated for auto selection and are best addressed as a custom order. You can select and contact us for pricing on up to three of the following:

  • 4 = Blue Housing
  • 5 = Green Housing
  • 6 = Conformal Coating
  • F2 = Paddlewheel Flow Meter, Kynar construction
  • F3 = Paddlewheel Flow Meter, input only, no sensor
  • H = 3-Wire Input for Paddlewheel Sensor (5 VDC)
  • N = 4-20 mA Output Isolated (requires power)
  • P ON/OFF Power Switch
  • R = Remove Stroke Adjust
  • S = 3-Function Valve (25 lbs load, anti-siphon & check)
  • 02 = Tank Mount pH Probe
  • 09 = PE-11
  • 10 = PE-21SS
  • 12 = Momentary Toggle Switch for WM Input

If you need further customization than what you see here, Contact Us.

Chemical Compatibility
When building the liquid end portion of a pump model it is critical that the materials selected are compatible with the product to be pumped. Listed below are some common chemicals and recommended liquid end codes. Example: Sodium Hypochlorite (chlorine) A130X1-KVCV.

Chemical Code
ACETIC ACID, 5-10% KHC
ALUMINUM SULFATE ‘alum’ KHC
AMINES, 0 - 35% KFC
AMINES, > 40% SFS
AMMONIA, 10% KHC
BROMINE KFC
CALCIUM HYPOCHLORITE KVC
DBNPA KFC
ETHYLENE GLYCOL KFC
FERRIC CHLORIDE KFC
FERRIC SULFATE KFC
GLUTARALDEHYDE KFC
HYDROCHLORIC ACID, 0 - 37% KFC
HYDROGEN PEROXIDE, 0 - 30% KVC
INHIBITING PHOSPHONATES KFC
ISOTHIAZOLINE KFC
NITRIC ACID, 0 - 20% KVC
PHOSPHORIC ACID, 0 - 100% KFC
POTASSIUM CHLORIDE KFC
SODIUM BI-CARBONATE ‘soda ash’ KFC
SODIUM BI-SULFATE KFC
SODIUM BI-SULFITE KFC
SODIUM BROMIDE KFC
SODIUM CARBONATE KFC
SODIUM HYDROXIDE, ‘caustic’, 0 - 50% KHC
SODIUM HYPOCHLORITE KVC
SODIUM NITRATE KFC
SODIUM SILICATE KHC
SODIUM SULFATE KHC
SODIUM SULFIDE KHC
SULFURIC ACID, 10 - 75% KFC
SULFURIC ACID, 95 - 100% KFC
