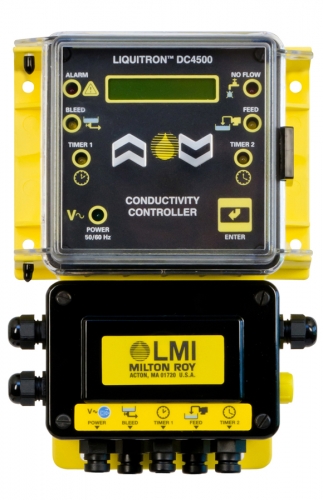

LMI Milton Roy Liquitron DC4500

The LMI Milton Roy Liquitron DC4000 is a Microprocessor-Based, Cooling Tower conductivity controller with dual biocide, adjustable lockout timer, prebleed, four [4] programmable inhibitor feed options, and 4-20 mA (non-isolated) recorder output. 0- 20,000 µS /cm control range.

Power Supply Options:

• 1 - 115 VAC, 50/60HZ
• 2 - 230 VAC, 50/60HZ

Voltage Options:

• 0 - No power cord, PG-9 connectors
• 1 - 115 VAC, 50/60HZ, USA Plug*
• 2 - 230 VAC, 50/60HZ, USA Plug*
• 3 - 220-240 VAC, 50/60HZ, DIN Plug*
• 5 - 240-250 VAC, 50/60HZ, UK Plug*
• 6 - 240-250 VAC, 50/60HZ, AUST/NZ Plug*
• 7 - 220 VAC, 50/60HZ, SWISS Plug*

NOTES:

• * All options listed with a part number above are available for purchase separately.  The price listed with the accessory is the price if purchased separately.

• *115VAC Units are provided with one 6 ft. (2m) grounded power cord and plug, and four [4] 1 ft. (30 cm) output power cords with grounded recepticles for controlled devices.
• *230VAC Units are provided with 6 ft. (2m) grounded power cords and plug, and throughput connectors for hardwire connection of controlled devices.

Pump Control Wiring Options:

• 0 - No Pump Output Power Cables (Pump Hardwired)
• 1 - Three (3) Pump Output Power Cables (115VAC recepticles)
• 2 - Three (3) Pump Signal Cables (Four [4] Conductor with 4-pin Connector)
• 3 - Three (3) Pump Signal Cables (Five [5] Conductor with 5-pin Connector)

Probe and Manifold Options:

• A-0 - No Probe/Manifold
• A-1 - Cooling Tower Carbon Probe and 3/4" Fslip Sch 80 PVC Tee with 10 ft (3m) Cable Assembly (Replacement Part 34758 - see note below)

• A-2 - Cooling Tower Carbon Probe and Manifold Assembly with Flow Switch, Sample Valve and 10ft (3m) Cable Assembly (Replacement Part 34752)

• A-3 - Same as option 2 above with NPT connectors (Replacement Part 35657)


The 115 VAC, 50/60HZ, USA Plug Controller Models that you can build price and purchase from this page are:

• DC4500-100A-0
• DC4500-100A-1
• DC4500-100A-2
• DC4500-100A-3
• DC4500-101A-0
• DC4500-101A-1
• DC4500-101A-2
• DC4500-101A-3
• DC4500-102A-0
• DC4500-102A-1
• DC4500-102A-2
• DC4500-102A-3
• DC4500-103A-0
• DC4500-103A-1
• DC4500-103A-2
• DC4500-103A-3
• DC4500-110A-0
• DC4500-110A-1
• DC4500-110A-2
• DC4500-110A-3
• DC4500-111A-0
• DC4500-111A-1
• DC4500-111A-2
• DC4500-111A-3
• DC4500-112A-0
• DC4500-112A-1
• DC4500-112A-2
• DC4500-112A-3
• DC4500-113A-0
• DC4500-113A-1
• DC4500-113A-2
• DC4500-113A-3

The 220-250 VAC, 50/60HZ, USA Plug Controller Models that you can build price and purchase from this page are:

• DC4500-200A-0
• DC4500-200A-1
• DC4500-200A-2
• DC4500-200A-3
• DC4500-201A-0
• DC4500-201A-1
• DC4500-201A-2
• DC4500-201A-3
• DC4500-202A-0
• DC4500-202A-1
• DC4500-202A-2
• DC4500-202A-3
• DC4500-203A-0
• DC4500-203A-1
• DC4500-203A-2
• DC4500-203A-3
• DC4500-220A-0
• DC4500-220A-1
• DC4500-220A-2
• DC4500-220A-3
• DC4500-221A-0
• DC4500-221A-1
• DC4500-221A-2
• DC4500-221A-3
• DC4500-222A-0
• DC4500-222A-1
• DC4500-222A-2
• DC4500-222A-3
• DC4500-223A-0
• DC4500-223A-1
• DC4500-223A-2
• DC4500-223A-3

Prices for the Continental 48 states of the USA only. For all LMI product orders contact us for a Custom Quotation.
