Model A Minus
$565.00 Add to cart to see price

Wingert Glycol Feeders, High Temperature, GL50-H

SKU: EP0-GYLHT-WIN
Price:
Add to cart to see price

Pump:
Alarm:   /B, alarm (see below) (Add $131.00)
Dry Contact:   /C, dry contact (see below) (Add $43.00)
Mixer:   /MXR, mixer (see below) (Add $409.00)
Manifold:   /HTM, Manifold (see below) (Add $94.00)
Text Area:
Qty: - +
   - OR -
*Note: This product is not eligible for rewards points earning.
*Note: This product cannot be redeemed using rewards points.

FOR CURRENT DISCOUNTS, SEE TERMS OF SALE TAB (LEFT).
With few exceptions, you get free shipping on orders over $100.00, lower 48 States of the USA.
We accept Visa, MasterCard, American Express, Discover, and
PayPal.

To Get Members Only Benefits, Click "Save Time On Your Next Visit" at Check Out.

Instant message me with your questions.

IF THIS PRODUCT IS NOT AVAILABLE FOR DIRECT PURCHASE, CLICK HERE TO CONTACT US FOR A QUOTATION

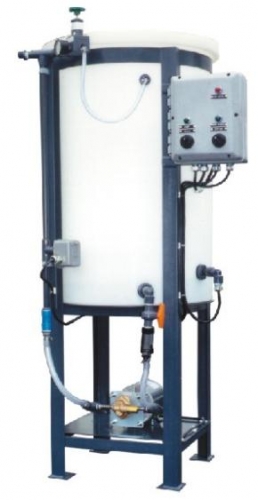

The J.L. Wingert GL50-H1-1 High Temperature Glycol Feeder. There is also a GL50-H1-2, GL50-H1-3 which are all the same price as the GL50-H1-1. Additionally, there is a GL50-H1-D which requires a custom quotation from Wingert. All of the above differences deal with cut in and cut out presures which we can specify after you place your order.

Standard J.L. Wingert Glycol Feeder Features include:

  • Industrial grade 1/4" thick polyethylene tank
  • Integral one piece carbon steel stand
  • Pump capacity output 1.3 GPM at 100 psi (2.2 GPM at 0 psi)
  • 1/3 hinged polyethylene cover
  • 3-30 psi, 10-50 psi and 40-100 psi available pressure ranges
  • NEMA 4X control panel
  • 10 amp relay
  • 8 ft. power cord
  • 1/2 HP gear pump optional (3 GPM at 100 psi)
  • Audible alarm and silence switch available
  • Optional remote dry contact on low level for PLC interface or control room alarm

 Additional standard features of the High Temperature System, GL50-H include:

  • 1/3 HP gear pump
  • NEMA 4X control panel
  • 50 gallon polyethylene tank with carbon steel stand
  • Coated with corrosion resistant epoxy paint
  • Low level float switch
  • Pressure switch and gauge
  • Brass pressure relief valve

GLYCOL FEED SYSTEM OPTIONAL FEATURES:

OPTIONDESCRIPTION
2 ½ HP, 3.0GPM @ 100PSI bronze gear pump (per pump)
X No pump (1/2” MNPT connectors)
/B 95 decibel, audible alarm and silence switch
/C Remote dry contact on low level (PLC interface, control room alarm)
/MXR 1/20HP, TEFC, stand mounted mixer and ON/OFF switch
/HTM

High temperature steel manifold on discharge side of gear pump

NOTE: Standard pressure range settings are 10-45PSI cut-in, 20-50PSI cutout with a 10-30PSI differential. Optional ranges are available upon request. Glycol feed systems include tank, hinged cover, low level control, pressure gauge and pressure relief valve. HTM Option is already included in the GL50-H1 models.

Contact us if you need any assistance.

View or download detailed Specifications, CLICK HERE

View or download Product Bulletin, CLICK HERE.

Prices for the Continental 48 states of the USA only. . GL50H1-1 GL50H11 GL50-H11
