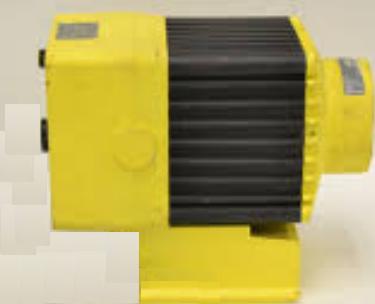

LMI MILTON ROY AD SERIES DRIVE ASSEMBLIES
USA LMI Milton Roy Drive Assemblies you can buy from this page are:
| Drive |
Output GPH |
Output l/h |
Pressure psi |
Pressure Bar |
|---|---|---|---|---|
| AD211 * | 0.002 to 0.21 | 0.01 to 0.8 | 250 | 17.2 |
| AD241 * | 0.005 to 0.5 | 0.02 to 1.9 | 250 | 17.2 |
| AD251 * | 0.01 to 1.0 | 0.04 to 3.8 | 110 | 7.6 |
| AD261 * | 0.02 to 2.0 | 0.08 to 7.6 | 50 | 3.4 |
| AD811 * | 0.002 to 0.21 | 0.01 to 0.8 | 250 | 17.2 |
| AD841 * | 0.005 to 0.5 | 0.02 to 1.9 | 250 | 17.2 |
| AD851 * | 0.01 to 1.0 | 0.04 to 3.8 | 110 | 7.6 |
| AD861 * | 0.02 to 2.0 | 0.08 to 7.6 | 50 | 3.4 |
| AD911 * | 0.002 to 0.21 | 0.01 to 0.8 | 250 | 17.2 |
| AD941 * | 0.005 to 0.5 | 0.02 to 1.9 | 250 | 17.2 |
| AD951 * | 0.01 to 1.0 | 0.04 to 3.8 | 110 | 7.6 |
| AD961 * | 0.02 to 2.0 | 0.08 to 7.6 | 50 | 3.4 |
Note: * Indicates voltage code & plug type. Code 1 inserted as standard. Change to one of the following numbers if required:
You can directly buy foreign plug types here. First, you select the drive assembly (for example AD96). Next, you select the Voltage/Cord Code. The default value is Code 1 - 110/120 VAC - US Plug. This becomes fifth character in the driive assembly model, and completes the precise model number. These are the possible Voltage/Cord Codes:
- 1 - 110/120 VAC - US Plug
- 2 - 220/240 VAC - US Plug
- 3 - 220/240 VAC - DIN Plug
- 5 - 220/240 VAC - UK Plug
- 6 - 220/240 VAC - Australia Plug
- 7 - 220/240 VAC - Swiss
- 8 - 110/120 VAC - Cord w/o Plug
If you do not see the LMI Product you are looking for in the store. Click the "Contact Us" Tab at the top of the page to ask us to prepare a custom order for you.
