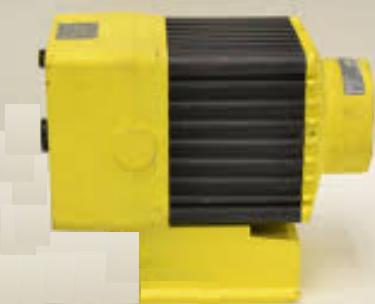

LMI MILTON ROY B SERIES DRIVE ASSEMBLIES
USA LMI Milton Roy Drive Assemblies you can buy from this page are:
| Drive |
Output GPH |
Output l/h |
Pressure psi |
Pressure Bar |
|---|---|---|---|---|
| B111 * | 0.01 to 1.60 | 0.05 to 6.10 | 150 | 10.3 |
| B121 * | 0.01 to 2.50 | 0.05 to 9.50 | 100 | 6.9 |
| B131 * | 0.02 to 4.50 | 0.09 to 17.0 | 50 | 3.4 |
| B141 * | 0.04 to 7.00 | 0.13 to 26.5 | 30 | 2.07 |
| B711 * | 0.00 to 1.60 | 0.00 to 6.10 | 150 | 10.3 |
| B721 * | 0.00 to 2.50 | 0.00 to 9.50 | 100 | 6.9 |
| B731 * | 0.00 to 4.50 | 0.00 to 17.0 | 50 | 3.4 |
| B741 * | 0.00 to 7.00 | 0.00 to 26.5 | 30 | 2.07 |
| B911 * | 0.00 to 1.60 | 0.00 to 6.10 | 150 | 10.3 |
| B921 * | 0.00 to 2.50 | 0.00 to 9.50 | 100 | 6.9 |
| B931 * | 0.00 to 4.50 | 0.00 to 17.0 | 50 | 3.4 |
| B941 * | 0.00 to 7.00 | 0.00 to 26.5 | 30 | 2.07 |
Note: * Indicates voltage code & plug type. Code 1 inserted as standard. Change to one of the following numbers if required:
You can directly buy foreign plug types here. First, you select the drive assembly (for example B94). Next, you select the Voltage/Cord Code. The default value is Code 1 - 110/120 VAC - US Plug. This becomes forth character in the driive assembly model, and completes the precise model number. These are the possible Voltage/Cord Codes:
- 1 - 110/120 VAC - US Plug
- 2 - 220/240 VAC - US Plug
- 3 - 220/240 VAC - DIN Plug
- 5 - 220/240 VAC - UK Plug
- 6 - 220/240 VAC - Australia Plug
- 7 - 220/240 VAC - Swiss
- 8 - 110/120 VAC - Cord w/o Plug
