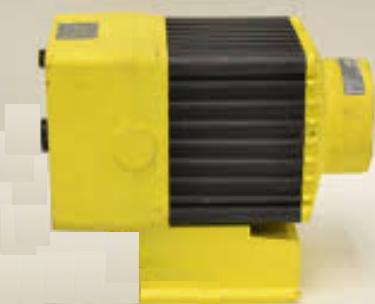

LMI MILTON ROY C SERIES DRIVE ASSEMBLIES
USA LMI Milton Roy Drive Assemblies you can buy from this page are:
| Drive |
Output GPH |
Output I/h |
Pressure psi |
Pressure Bar |
|---|---|---|---|---|
| C101 * | 0.01 to 1.30 | 0.03 to 4.90 | 300 | 20.7 |
| C111 * | 0.01 to 2.50 | 0.05 to 9.50 | 150 | 10.3 |
| C121 * | 0.02 to 4.00 | 0.08 to 15.1 | 100 | 6.9 |
| C131 * | 0.05 to 8.00 | 0.17 to 30.3 | 60 | 4.1 |
| C141 * | 0.1 to 20.00 | 0.38 to 76.0 | 25 | 1.8 |
| C701 * | 0.00 to 1.30 | 0.00 to 4.90 | 300 | 20.7 |
| C711 * | 0.00 to 2.50 | 0.00 to 9.50 | 150 | 10.3 |
| C721 * | 0.00 to 4.00 | 0.00 to 15.1 | 100 | 6.9 |
| C731 * | 0.00 to 8.00 | 0.00 to 30.3 | 60 | 4.1 |
| C741 * | 0.00 to 20.0 | 0.00 to 76.0 | 25 | 1.8 |
| C761 * | 0.00 to 4.00 | 0.00 to 15.1 | 175 | 12.1 |
| C771 * | 0.00 to 10.0 | 0.00 to 38.0 | 80 | 5.5 |
| C781 * | 0.00 to 25.0 | 0.00 to 95.0 | 30 | 2.07 |
| C901 * | 0.00 to 1.30 | 0.00 to 4.90 | 300 | 20.7 |
| C911 * | 0.00 to 2.50 | 0.00 to 9.50 | 150 | 10.3 |
| C921 * | 0.00 to 4.00 | 0.00 to 15.1 | 100 | 6.9 |
| C931 * | 0.00 to 8.00 | 0.00 to 30.3 | 60 | 4.1 |
| C941 * | 0.00 to 20.0 | 0.00 to 76.0 | 25 | 1.8 |
Note: * Indicates voltage code & plug type. Code 1 inserted as standard. Change to one of the following numbers if required:
You can directly buy foreign plug types here. First, you select the drive assembly (for example C94). Next, you select the Voltage/Cord Code. The default value is Code 1 - 110/120 VAC - US Plug. This becomes forth character in the driive assembly model, and completes the precise model number. These are the possible Voltage/Cord Codes:
- 1 - 110/120 VAC - US Plug
- 2 - 220/240 VAC - US Plug
- 3 - 220/240 VAC - DIN Plug
- 5 - 220/240 VAC - UK Plug
- 6 - 220/240 VAC - Australia Plug
- 7 - 220/240 VAC - Swiss
- 8 - 110/120 VAC - Cord w/o Plug
