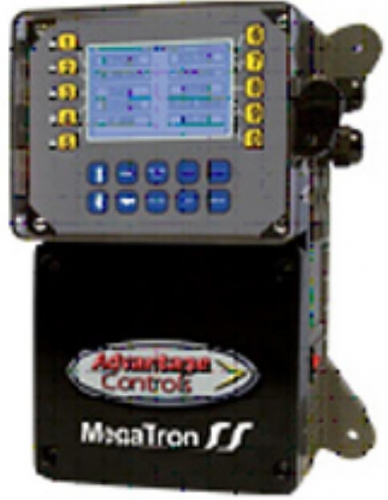

THE ADVANTAGE CONTROLS MEGATRON XS CONTROLLER

Custom build your own from this page.

Two Year Factory Warranty!

We will meet or beat anyone's price on Advantage Controls equipment.

The MegaTron XS makes continuous monitoring and control of industrial boiler water or cooling water systems easy with a user friendly ATM style menu and a large 16 line full graphic display that allows complete programming from the keypad. Using a simple system approach an individual MegaTron XS can be specifically configured with the functions your application requires.

With the H1 Internet Card (LOWEST PRICE ON THE INTERNET), the Megatron XS works through the internet with Advantage Controls WebAdvantage. To see a Megatron LIVE using WebAdvantage, click here.

Key Features

• Customizable LCD Display
• On Board History Graphs
• Simple ATM Style Menu
• One Point Calibration
• Internet Communications Option
• 5 Assignable Relays
• Relay Test Keys
• Customizable Notepad
• Multi-Level Security Code
• LSI or RSI Index with pH (Cooling tower models only)

• 2 Year Replacement Warranty
• USB History Access

To view or download a PDF Bulletin on this product, Click Here.

The Options available on this page are:

Conductivity Control:

• None
• C = TE-4A Standard Tower probe; 140°F and 150 PSI max
• C0 = Tower Conductivity no probe
• C1 = TE-4ASS Standard Tower probe w/ S.Steel Tips; 140°F and 150 PSI max
• C3 = AH-4ASS 1” MNPT, 212°F and 250 PSI max
• C5 = DC-4ASS tank mount; 190°F max
• C8 = AL-4RTD pure water probe, 212°F and 100 PSI max (no ORP with C8)
• C10 = DI-4A, 140°F and 150 PSI max, 1” MNPT
• C11 = CS-4ASS corporation stop style electrode, 60 PSI
• C12= AL-4ASS pure water, ½” MNPT, thermistor.
• B = BE-34BC boiler probe, thermister temp, 1” cross, 250 PSI @ 400°F
• B0 = Boiler conductivity no probe
• B1 = BE-4RTDC boiler probe, RTD temp, 1” cross, 350 PSI @ 265°F / 250 @ 400°F
• B2 = BE-32C probe, no temp comp, 1” cross, 350 PSI @ 265°F / 250 PSI @ 400°F
• B5 = BE-2C boiler probe, no temp comp, 1” cross, 75 PSI boiler max
• B6 = BE-4RTD-SC boiler probe, RTD temp, 3/4” cross
• B7 = BE-32-SC probe, no temp comp 3/4” cross, 350 PSI
• B9 = Boiler conductivity with RTD temp; no probe
• D = DI-27-4A high conductivity range, 140°F and 150 PSI max
• D1 = TE-4A high conductivity range (0-50,000)

Make-up / Miscellaneous Conductivity

• None
• M = DI-4A Standard Make-up, 140°F and 150 PSI max, 1” MNPT
• M0 = Make-up / miscellaneous conductivity no probe
• M1 = DI-4ASS
• M3 = AH-4ASS with 1” MNPT, 250 PSI max
• M4 = TE-4A PVC 3/4” slip tee design, 150 psi max
• M6 = CS-4ASS corporation stop style electrode, 60 PSI

PH Control For dual set point use Q instead of P:

• None
• P = TPE-21 Standard Tower, 140°F and 100 PSI max
• P0 = pH Control no probe
• P2 = TPE-21 w/ pre amp
• P4 = Tank mounted probe
• P5 = Tank mount w/ pre amp
• P8 = PE-21SS stainless steel probe 1/2” MNPT, 212°F and 250 PSI max
• P9 = PE-21SS with pre amp
• P11 = PE-11 low ionic probe with 1/2” MNPT, 180°F and 50 PSI max
• P12 = PE-11 w/ pre amp
• P15 = PE-21CS Corp-stop style pH probe w/ pre amp

ORP Control (1 per controller):

• None
• R = TOE-21 Standard Tower, 140°F and 100 PSI max
• R0 = ORP Control no probe
• R2 = TOE-21 with preamp
• R4 = Tank mounted probe
• R5 = Tank mounted ORP w/ pre amp
• R8 = OE-21SS stainless steel probe 1/2” MNPT, 212°F and 250 PSI max
• R15 = OE-21CS Corp-stop style ORP probe w/ pre amp

Feed Timers (max of 5 per controller: 28-DAY, PULSE, %, LIMIT or POST BLEED):

• None
• F1 = One feed timer
• F2 = Two feed timers
• F3 = Three feed timers
• F4 = Four feed timers
• F5 = Five feed timers

Flow Switches:

• None
• E = Standard float style flow switch assembly (towers); 140 PSI @ 75°F
• E3 = Paddle flow switch with PVC flow assembly; 140 PSI @ 75°F
• E4 = Paddle flow switch with PVC flow assembly (unassembled with 10’ cord); 140 PSI @ 75°F
• E5 = Paddle flow switch with brass assembly; 250 PSI @ 75°F (order appropriate probes)
• E6 = Flow switch connection only with cable

• E8 = Standard float switch assembly unassembled with 10’ cord; 140 PSI @ 75°F
• E9 = Paddle flow switch with SS tee only 250 PSI (17.2 bar) @ 75°F (23.8°C
• E11 = Flow indicator (0-10) with adjustable switch, PVC assembly; 100 PSI @ 125°F

Power Cord:

• A = Conduit connections
• A1 = Liquid tights only with 120 volt relay cards
• A3 = Liquid tights only with CE mark
• A5 = Prewired power cord to On/Off; 120 volt relay boards have no power
• A6 = Korean power cord, no pigtails
• A7 = Australian power cord, no pigtails
• A8 = Prewired USA power cord with 1/2” conduit relay connections
• A9 = Prewired USA power cord; no relay board(s)
• A11 = 240 relay board with USA plug

Communication:

• None
• H = Internet card with CAT5 connection and Wi-Fi
• H2 = Internet card with CAT5 connection, no Wi-Fi

• H11 = Internet card with CAT5 connection and Modbus TCP/IP
• H21 = Internet card with CAT5 connection and BACnet TCP/IP
• H22 = Communications card with CAT5 connection and BACnet read/write via TCP/IP


Miscellaneous Inputs:

• None
• N4 = Four 4-20mA Isolated Inputs

• N8 = Eight 4-20mA isolated inputs (O4 option not available)


4-20mA Outputs:

• None
• O4 = Four 4-20mA Isolated Outputs

DC Outputs:

• None
• V = 5 VDC output with water meter connections for paddle wheel flow meters
• V2 = 12 VDC output with water meter connections for paddle wheel flow meters

Auxiliary Inputs:

• None
• W1 = 1 auxiliary flow input for a bleed flow alarm

• W4 = 4 auxiliary flow meter inputs

ETL:

• None
• Y = ETL Agency Listing

Cover:

• Z = Black cover instead of clea

Notes: 1. Pre-wired 4-20mA input cables with external connector can be ordered below.
           2. 0-5 volt input option required for BlueTrack

Many of these options are quite exotic and seldom needed. If this is getting too confusing, Contact Us with your basic requirements and we will prepare a formal PDF Quotation and email it to you.
