The Megatron SS SSCF3E-H21
$2434.00 Add to cart to see price

Motorized Ball Valves with 360 Degree Actuators MBWB

SKU: EP0-MOTBV-360
Price:
Add to cart to see price

Valve Size:
Text Area:
Qty: - +
   - OR -
*Note: This product is not eligible for rewards points earning.
*Note: This product cannot be redeemed using rewards points.

FOR CURRENT DISCOUNTS, SEE TERMS OF SALE TAB (LEFT).
With few exceptions, you get free shipping on orders over $100.00, lower 48 States of the USA.
We accept Visa, MasterCard, American Express, Discover, and
PayPal.

To Get Members Only Benefits, Click "Save Time On Your Next Visit" at Check Out.

Instant message me with your questions.

IF THIS PRODUCT IS NOT AVAILABLE FOR DIRECT PURCHASE, CLICK HERE TO CONTACT US FOR A QUOTATION.

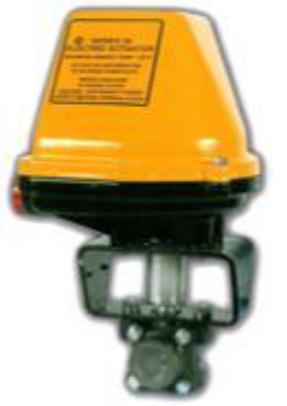

MOTORIZED BALL VALVES, 0-450 psi, WITH 360 DEGREE ELECTRIC ACUTATORS, MBWB

We still sell these at an excellent price, but just not enough of them to justify the labor of maintaining current pricing. Thus, these are by PDF Quotation.

We will meet or beat anyone's price on Advantage Controls equipment.

CONTACT US FOR PRICE QUOTATION.

The significant features are:

  • Max Fluid Temp. ..................................459 degrees Fahrenheit
  • Max Boiler Pressure.....................450 PSIG
  • Valve Body ..........................Carbon Steal
  • Ball & Stem...........................................316 SS
  • Seals.....................................................Teflon
  • Shipping Weight ................................... 9 lbs.
  • Actuator Ambient Max.....................150 degrees Fahrenheit
  • Standard Electrical .....120 VAC 2.3 Amp
  • Sizes Available ......................... 1/2” & 3/4”

Motorized valves that you can purchase from this page are:

  • MBWB-1/2, 1/2 inch Valve with 1036 Actuator
  • MBWB-3/4, 3/4 inch Valve with 1036 Actuator
  • MBWB-1, 1 inch Valve with 1036 Actuator

To view or download a PDF file on this product, Click Here.

It is our experience that motorized valves though more expensive than solenoid valves out perform solenoid valves IN BOILER APPLICATIONS on a cost performance basis. We DO offer the solenoid valve, if you insist upon the cheaper option but we advise against it.

If you don't see what you need here, note the presure requirements that you need to meet, then contact_us for recommendations and pricing to meet your specific requirements.

Prices for the Continental 48 states of the USA only.
