Neptune Corporation Stops and Injection Quills

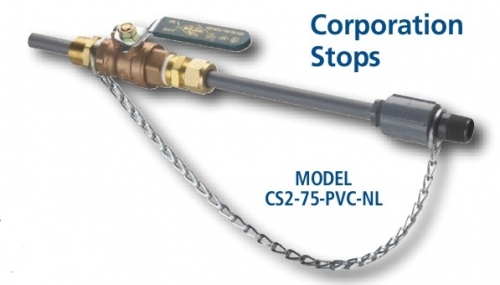

CORPORATION STOPS (INJECTION ASSEMBLIES)

CS2-50-PVC-NL

PVC - 1/2" NPT, with no lead brass valve

CS2SS-50-PVC

PVC - 1/2" NPT, with 316 valve

CS2-75-PVC-NL

PVC - 3/4" NPT, with no lead brass valve

CS2SS-75-PVC

PVC - 3/4" NPT, with 316 valve

CS2-75-PVC-NL-AWWA

PVC - 3/4" AWWA, with no lead brass valve

CS2SS-75-PVC-AWWA

PVC - 3/4" AWWA, with 316 valve

CS2-100-PVC-NL

PVC - 1" NPT, with no lead brass valve

CS2SS-100-PVC

PVC - 1" NPT, with 316 valve

CS2-100-PVC-NL-AWWA

PVC - 1" AWWA, with no lead brass valve

CS2SS-100-PVC-AWWA

PVC - 1" AWWA, with 316 valve

CS2-50-KY-NL

Kynar - 1/2" NPT, with no lead brass valve

CS2SS-50-KY

Kynar - 1/2" NPT, with 316 valve

CS2-75-KY-NL

Kynar - 3/4" NPT, with no lead brass valve

CS2SS-75-KY

Kynar - 3/4" NPT, with 316 valve

CS2-100-KY-NL

Kynar - 1" NPT, with no lead brass valve

CS2SS-100-KY

Kynar - 1" NPT, with 316 valve

CS2-50-316-NL

316 SS - 1/2" NPT, with no lead brass valve

CS2SS-50-316

316 SS - 1/2" NPT, with 316 valve

CS2-75-316-NL

316 SS - 3/4" NPT, with no lead brass valve

CS2SS-75-316

316 SS - 3/4" NPT, with 316 valve

CS2-100-316-NL

316 SS - 1" NPT, with no lead brass valve

CS2SS-100-316

316 SS - 1" NPT, with 316 valve

CS2-50-C20-NL

C20 - 1/2" NPT, with no lead brass valve

CS2SS-50-C20

C20 - 1/2" NPT, with 316 valve

CS2-75-C20-NL

C20 - 3/4" NPT, with no lead brass valve

CS2SS-75-C20

C20 - 3/4" NPT, with 316 valve

CS2-100-C20-NL

C20 - 1" NPT, with no lead brass valve

CS2SS-100-C20

C20 - 1" NPT, with 316 valve

SPECIAL LENGTH: Add suffix "-SP" to model number

CHECK VALVE FOR CORPORATION STOPS (packed loose)

CSCV-PVC-E

1/2" PVC check valve, EPDM seat, female ends plus two nipples

CSCV-PVC-V

1/2" PVC check valve, viton seat, female ends plus two nipples

CSCV-316

1/2" 316 SS check valve, 316 SS seat, male ends

INJECTION QUILLS

QC-PVC-50

1/2" PVC body, 150 psi max, with ceramic check valve

QB-PVC-50

1/2" PVC body, 150 psi max, without check valve

QC-PVC-75

3/4" PVC body,150 psi max, with ceramic check valve

QB-PVC-75

3/4" PVC body, 150 psi max, without check valve

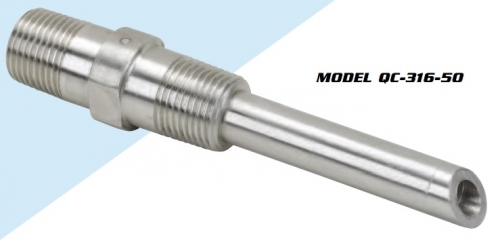

QC-316-50

1/2" 316 body, 3000 psi max, with316 check valve

QB-316-50

1/2" 316 body, 3000 psi max, without check valve

QC-316-75

3/4" 316 body, 3000 psi max, with316 check valve

QB-316-75

3/4" 316 body, 3000 psi max, without check valve

QC-C20-50

1/2" C20 body, 3000 psi max, with C20 check valve

QB-C20-50

1/2" C20 body, 3000 psi max, without check valve

QC-KY-50

1/2" kynar body, 150 psi max, withceramic check valve

QB-KY-50

1/2" kynar body, 150 psi max, without check valve

QC-KY-50T

1/2" kynar body, 150 psi max, with teflon check valve,

QC-KY-75

3/4" kynar body, 150 psi max, with ceramic check valve

QB-KY-75

3/4" kynar body, 150 psi max, without check valve

QC-316-HPSE

Same as QC-316-50 except with slotted end

SPECIAL LENGTH (Available for QC models): Add suffix "-SP" to model number, max lengthe 24" all materials

To view or download a Technical Bulletin on these products, Click Here.
