Neptune Series Electronic Diaphragm Pumps
*Note: This product cannot be redeemed using rewards points.
FOR CURRENT DISCOUNTS, SEE TERMS OF SALE TAB (LEFT).
With few exceptions, you get free shipping on orders over $100.00, lower 48 States of the USA.
We accept Visa, MasterCard, American Express, Discover, and PayPal.
To Get Members Only Benefits, Click "Save Time On Your Next Visit" at Check Out.
Instant message me with your questions.
IF THIS PRODUCT IS NOT AVAILABLE FOR DIRECT PURCHASE, CLICK HERE TO CONTACT US FOR A QUOTATION.
Neptune Series “PZ” Electronic Diaphragm Pumps
This is a list of Neptune equipment that we sell by Custom Quotation. Prices quoted may include Free Shipping within the lower 48 States of the USA.
The products that we can offer price quotations on are as follows:
|

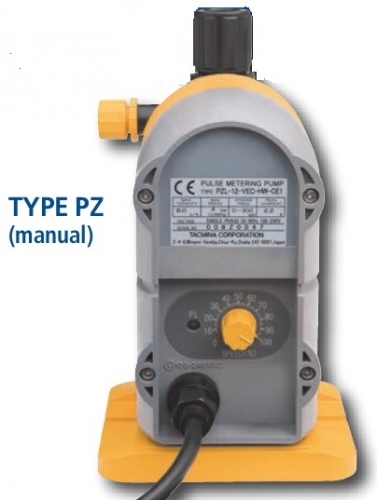

SERIES "PZ" ELECTRONIC DIAPHRAGM PUMPS (MANUAL CONTROL) |
|
|
PZ-31-FTCE |
Kynar / EPDM Liquid End, 10.5 gpd, max psi 220, shipping weight 7 pounds |
|
PZ-31-SS |
316SS / EPDM Liquid End, 10.5 gpd, max psi 220, shipping weight 7 pounds |
|
PZ-31-VTCF |
PVC / Viton Liquid End, 11.4 gpd, max psi 140, shipping weight 7 pounds |
|
PZ-31-VTCE |
PVC / EPDM Liquid End, 11.4 gpd, max psi 140, shipping weight 7 pounds |
|
PZ-31-CL |
Acrylic / Viton Liquid End, 11.4 gpd, max psi 140, shipping weight 7 pounds |
|
PZ-31-ARPZ* |
Acrylic / Viton Liquid End, 11.4 gpd, max psi 140, shipping weight 7 pounds |
|
PZ-31-FTCF |
Kynar / Viton Liquid End, 11.4 gpd, max psi 140, shipping weight 7 pounds |
|
PZ-31-FTCT |
Kynar / Teflon Liquid End, 11.4 gpd, max psi 140, shipping weight 7 pounds |
|
PZ-61-VTCF |
PVC / Viton Liquid End, 22.8 gpd, max psi 115, shipping weight 7 pounds |
|
PZ-61-VTCE |
PVC / EPDM Liquid End, 22.8 gpd, max psi 115, shipping weight 7 pounds |
|
PZ-61-CL |
Acrylic / Viton Liquid End, 22.8 gpd, max psi 115, shipping weight 7 pounds |
|
PZ-61-ARPZ* |
Acrylic / Viton Liquid End, 22.8 gpd, max psi 115, shipping weight 7 pounds |
|
PZ-61-FTCF |
Kynar / Viton Liquid End, 22.8 gpd, max psi 115, shipping weight 7 pounds |
|
PZ-61-FTCT |
Kynar / Teflon Liquid End, 22.8 gpd, max psi 115, shipping weight 7 pounds |
|
PZ-61-SS |
316SS / EPDM Liquid End, 22.8 gpd, max psi 115, shipping weight 7 pounds |
|
PZ-12-VTCF |
PVC / Viton Liquid End, 38.0 gpd, max psi 60, shipping weight 7 pounds |
|
PZ-12-VTCE |
PVC / EPDM Liquid End, 38.0 gpd, max psi 60, shipping weight 7 pounds |
|
PZ-12-CL |
Acrylic / Viton Liquid End, 380 gpd, max psi 60, shipping weight 7 pounds |
|
PZ-12-ARPZ* |
Acrylic / Viton Liquid End, 38.0 gpd, max psi 60, shipping weight 7 pounds |
|
PZ-12-FTCF |
Kynar / Viton Liquid End, 38.0 gpd, max psi 60, shipping weight 7 pounds |
|
PZ-12-FTCT |
Kynar / Teflon Liquid End, 38.0 gpd, max psi 60, shipping weight 7 pounds |
|
PZ-12-SS |
316SS / EPDM Liquid End, 38.0 gpd, max psi 60, shipping weight 7 pounds |
|
* Derate capacity 5% for air release models. |
|
|

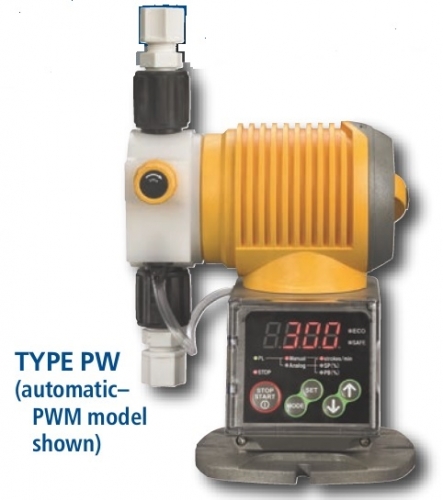

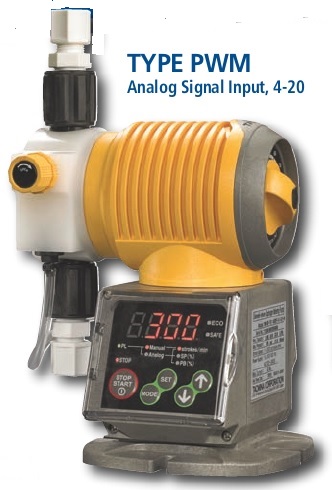

SERIES "PZ" ELECTRONIC DIAPHRAGM PUMPS (4-20 mADC CONTROL) |
|
|
PWM-31-VTCF |
PVC / Viton Liquid End, 11.4 gpd, max psi 140, shipping weight 7 pounds |
|
PWM-31-VTCE |
PVC / EPDM Liquid End, 11.4 gpd, max psi 140, shipping weight 7 pounds |
|
PWM-31-CL** |
Acrylic / Viton Liquid End, 11.4 gpd, max psi 140, shipping weight 7 pounds |
|
PWM-31-FTCF |
Kynar / Viton Liquid End, 11.4 gpd, max psi 140, shipping weight 7 pounds |
|
PWM-31-FTCT |
Kynar / Teflon Liquid End, 11.4 gpd, max psi 140, shipping weight 7 pounds |
|
PWM-61-VTCF |
PVC / Viton Liquid End, 22.8 gpd, max psi 140, shipping weight 7 pounds |
|
PWM-61-VTCE |
PVC / EPDM Liquid End, 22.8 gpd, max psi 140, shipping weight 7 pounds |
|
PWM-61-CL** |
Acrylic / Viton Liquid End, 22.8 gpd, max psi 140, shipping weight 7 pounds |
|
PWM-61-FTCF |
Kynar / Viton Liquid End, 22.8 gpd, max psi 140, shipping weight 7 pounds |
|
PWM-61-FTCT |
Kynar / Teflon Liquid End, 22.8 gpd, max psi 140, shipping weight 7 pounds |
|
PWM-12-VTCF |
PVC / Viton Liquid End, 38.0 gpd, max psi 100, shipping weight 7 pounds |
|
PWM-12-VTCE |
PVC / EPDM Liquid End, 38.0 gpd, max psi 100, shipping weight 7 pounds |
|
PWM-12-CL** |
Acrylic / Viton Liquid End, 38.0 gpd, max psi 100, shipping weight 7 pounds |
|
PWM-12-FTCF |
Kynar / Viton Liquid End, 38.0 gpd, max psi 100, shipping weight 7 pounds |
|
PWM-12-FTCT |
Kynar / Teflon Liquid End, 38.0 gpd, max psi 100, shipping weight 7 pounds |
|

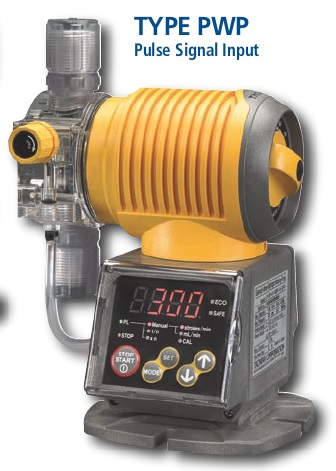

SERIES "PZ" ELECTRONIC DIAPHRAGM PUMPS (PULSE CONTROL) |
|
|
PWP-31-VTCET |
PVC / EPDM / Teflon Liquid End, 10.5 gpd, max psi 220, shipping weight 7 pounds |
|
PWP-31-VTCF |
PVC / Viton Liquid End, 11.4 gpd, max psi 140, shipping weight 7 pounds |
|
PWP-31-VTCE |
PVC / EPDM Liquid End, 11.4 gpd, max psi 140, shipping weight 7 pounds |
|
PWP-31-CL** |
Acrylic / Viton Liquid End, 11.4 gpd, max psi 140, shipping weight 7 pounds |
|
PWP-31-FTCF |
Kynar / Viton Liquid End, 11.4 gpd, max psi 140, shipping weight 7 pounds |
|
PWP-31-FTCT |
Kynar / Teflon Liquid End, 11.4 gpd, max psi 140, shipping weight 7 pounds |
|
PWP-61-VTCF |
PVC / Viton Liquid End, 22.8 gpd, max psi 140, shipping weight 7 pounds |
|
PWP-61-VTCE |
PVC / EPDM Liquid End, 22.8 gpd, max psi 140, shipping weight 7 pounds |
|
PWP-61-CL** |
Acrylic / Viton Liquid End, 22.8 gpd, max psi 140, shipping weight 7 pounds |
|
PWP-61-FTCF |
Kynar / Viton Liquid End, 22.8 gpd, max psi 140, shipping weight 7 pounds |
|
PWP-61-FTCT |
Kynar / Teflon Liquid End, 22.8 gpd, max psi 140, shipping weight 7 pounds |
|
PWP-12-VTCF |
PVC / Viton Liquid End, 38.0 gpd, max psi 100, shipping weight 7 pounds |
|
PWP-12-VTCE |
PVC / EPDM Liquid End, 38.0 gpd, max psi 100, shipping weight 7 pounds |
|
PWP-12-CL** |
Acrylic / Viton Liquid End, 38.0 gpd, max psi 100, shipping weight 7 pounds |
|
PWP-12-FTCF |
Kynar / Viton Liquid End, 38.0 gpd, max psi 100, shipping weight 7 pounds |
|
PWP-12-FTCT |
Kynar / Teflon Liquid End, 38.0 gpd, max psi 100, shipping weight 7 pounds |
|

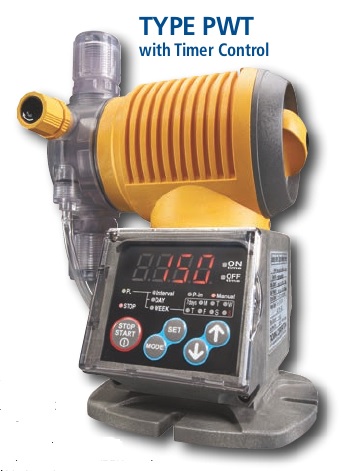

SERIES "PZ" ELECTRONIC DIAPHRAGM PUMPS (TIMER BATCH CONTROL) |
|
|
PWT-31-VTCF |
PVC / Viton Liquid End, 11.4 gpd, max psi 140, shipping weight 7 pounds |
|
PWT-31-VTCE |
PVC / EPDM Liquid End, 11.4 gpd, max psi 140, shipping weight 7 pounds |
|
PWT-31-CL** |
Acrylic / Viton Liquid End, 11.4 gpd, max psi 140, shipping weight 7 pounds |
|
PWT-31-FTCF |
Kynar / Viton Liquid End, 11.4 gpd, max psi 140, shipping weight 7 pounds |
|
PWT-31-FTCT |
Kynar / Teflon Liquid End, 11.4 gpd, max psi 140, shipping weight 7 pounds |
|
PWT-61-VTCF |
PVC / Viton Liquid End, 22.8 gpd, max psi 140, shipping weight 7 pounds |
|
PWT-61-VTCE |
PVC / EPDM Liquid End, 22.8 gpd, max psi 140, shipping weight 7 pounds |
|
PWT-61-CL** |
Acrylic / Viton Liquid End, 22.8 gpd, max psi 140, shipping weight 7 pounds |
|
PWT-61-FTCF |
Kynar / Viton Liquid End, 22.8 gpd, max psi 140, shipping weight 7 pounds |
|
PWT-61-FTCT |
Kynar / Teflon Liquid End, 22.8 gpd, max psi 140, shipping weight 7 pounds |
|
PWT-12-VTCF |
PVC / Viton Liquid End, 38.0 gpd, max psi 100, shipping weight 7 pounds |
|
PWT-12-VTCE |
PVC / EPDM Liquid End, 38.0 gpd, max psi 100, shipping weight 7 pounds |
|
PWT-12-CL** |
Acrylic / Viton Liquid End, 38.0 gpd, max psi 100, shipping weight 7 pounds |
|
PWT-12-FTCF |
Kynar / Viton Liquid End, 38.0 gpd, max psi 100, shipping weight 7 pounds |
|
PWT-12-FTCT |
Kynar / Teflon Liquid End, 38.0 gpd, max psi 100, shipping weight 7 pounds |
|
* Derate capacity 5% for air release models. |
|
|
* * ARPZ not available in PW pumps. Use CL model. All CL |
|
|
versions (including -31 & -61 are limited to 100 psi maximum. |
|
|
FLOW VERIFICATION: FLOW CHECKERS |
|
|
FC-1P-P-N1 |
Flow checker, Ryton*, use with PZ or PW-31, shipping weight 2 pounds |
|
FC-1P-P-N1 |
Flow checker, Noryl**, use with PZ or PW-31, shipping weight 2 pounds |
|
FC-1P-P-N2 |
Flow checker, Ryton*, use with PZ or PW-61 or -12, shipping weight 2 pounds |
|
FC-1P-P-N2 |
Flow checker, Ryton*, use with PZ or PW-61 or -12, shipping weight 2 pounds |
|
*Ryton: PPS - Polyphenylene Sulfide (for general chemicals) |
|
|
**Noryl: PPO - Polyphenylene Oxide (for sodium hypochlorite) |
|
|
Flow checkers do not integrate with PW pumps |
|
|
SERIES "PZ"- HIGHER FLOW RATES |
|
|
PZD-32-VTCF |
Manual, PVC / Viton Liquid End, 137 gpd, max psi 45, shipping weight 14 pounds |
|
PZD-32-FTCT |
Manual, Kynar / Teflon Liquid End, 137 gpd, max psi 45, shipping weight 14 pounds |
|
PZD-32-SS |
Manual, 316SS / EPDM Liquid End, 137 gpd, max psi 45, shipping weight 14 pounds |
|
PZD-52-VTCF |
Manual, PVC / Viton Liquid End, 205 gpd, max psi 30, shipping weight 14 pounds |
|
PZD-52-FTCT |
Manual, Kynar / Teflon Liquid End, 205 gpd, max psi 30, shipping weight 14 pounds |
|
PZD-52-SS |
Manual, 316SS / EPDM Liquid End, 205 gpd, max psi 30, shipping weight 14 pounds |
|
PZi4-32-VTCF |
4-20 mADC/Pulse, PVC / Viton Liquid End, 137 gpd, max psi 45, automatic with external input, shipping weight 14 pounds |
|
PZi4-32-FTCT |
4-20 mADC/Pulse, Kynar / Teflon Liquid End, 137 gpd, max psi 45, automatic with external input, shipping weight 14 pounds |
|
PZi4-32-SS |
4-20 mADC/Pulse, 316SS / EPDM Liquid End, 137 gpd, max psi 45 ,automatic with external input, shipping weight 14 pounds |
|
PZi4-52-VTCF |
4-20 mADC/Pulse, PVC / Viton Liquid End, 205 gpd, max psi 30, automatic with external input, shipping weight 14 pounds |
|
PZi4-52-FTCT |
4-20 mADC/Pulse, Kynar / Teflon Liquid End, 205 gpd, max psi 30, automatic with external input, shipping weight 14 pounds |
|
PZi4-52-SS |
4-20 mADC/Pulse, 316SS / EPDM Liquid End, 205 gpd, max psi 30, automatic with external input, shipping weight 14 pounds |
|

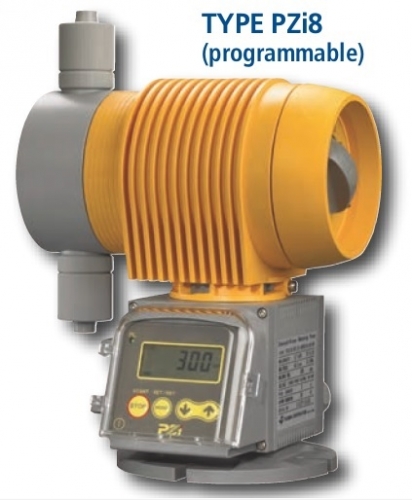

PZi8-32-VTCF |
4-20 mADC/Pulse, PVC / Viton Liquid End, 137 gpd, max psi 45, automatic with external input PLUS programable, shipping weight 14 pounds |
|
PZi8-32-FTCT |
4-20 mADC/Pulse, Kynar / Teflon Liquid End, 137 gpd, max psi 45, automatic with external input PLUS programable, shipping weight 14 pounds |
|
PZi8-32-SS |
4-20 mADC/Pulse, 316SS / EPDM Liquid End, 137 gpd, max psi 45, automatic with external input PLUS programable, shipping weight 14 pounds |
|
PZi8-52-VTCF |
4-20 mADC/Pulse, PVC / Viton Liquid End, 205 gpd, max psi 30, automatic with external input PLUS programable, shipping weight 14 pounds |
|
PZi8-52-FTCT |
4-20 mADC/Pulse, Kynar / Teflon Liquid End, 205 gpd, max psi 30, automatic with external input PLUS programable, shipping weight 14 pounds |
|
PZi8-52-SS |
4-20 mADC/Pulse, 316SS / EPDM Liquid End, 205 gpd, max psi 30, automatic with external input PLUS programable, shipping weight 14 pounds |
|
SERIES "PZiG" PUMPS- AUTOMATIC FLOW CONTROL |
|
|
PZiG-300-VTCE |
PVC / EPDM Liquid End, 5.4 gpd, max psi 140, shipping weight 28 pounds |
|
PZiG-300-VTCF |
PVC / Viton Liquid End, 5.4 gpd, max psi 140, shipping weight 28 pounds |
|
PZiG-300-VTCF-V* |
PVC / Viton Liquid End, 5.4 gpd, max psi 140, shipping weight 28 pounds |
|
PZiG-300-FTCT |
Kynar / Teflon Liquid End, 5.4 gpd, max psi 140, shipping weight 28 pounds |
|
PZiG-300-FTCT-A** |
Kynar / Teflon Liquid End, 5.4 gpd, max psi 140†, shipping weight 28 pounds |
|
PZiG-500-VTCE |
PVC / EPDM Liquid End, 8.4 gpd, max psi 100, shipping weight 28 pounds |
|
PZiG-500-VTCF |
PVC / Viton Liquid End, 8.4 gpd, max psi 100, shipping weight 28 pounds |
|
PZiG-500-VTCF-V* |
PVC / Viton Liquid End, 8.4 gpd, max psi 100, shipping weight 28 pounds |
|
PZiG-500-FTCT |
Kynar / Teflon Liquid End, 8.4 gpd, max psi 100, shipping weight 28 pounds |
|
PZiG-500-FTCT-A** |
Kynar / Teflon Liquid End, 8.4 gpd, max psi 100†, shipping weight 28 pounds |
|
PZiG-700-VTCE |
PVC / EPDM Liquid End, 12.0 gpd, max psi 60, shipping weight 28 pounds |
|
PZiG-700-VTCF |
PVC / Viton Liquid End, 12.0 gpd, max psi 60, shipping weight 28 pounds |
|
PZiG-700-VTCF-V* |
PVC / Viton Liquid End, 12.0 gpd, max psi 60, shipping weight 28 pounds |
|
PZiG-700-FTCT |
Kynar / Teflon Liquid End, 12.0 gpd, max psi 60, shipping weight 28 pounds |
|
PZiG-700-FTCT-A** |
Kynar / Teflon Liquid End, 12.0 gpd, max psi 60, shipping weight 28 pounds |
|
PZiG-1000-VTCE |
PVC / EPDM Liquid End, 15.8 gpd, max psi 45, shipping weight 28 pounds |
|
PZiG-1000-VTCF |
PVC / Viton Liquid End, 15.8 gpd, max psi 45, shipping weight 28 pounds |
|
PZiG-1000-VTCF-V* |
PVC / Viton Liquid End, 15.8 gpd, max psi 45, shipping weight 28 pounds |
|
PZiG-1000-FTCT |
Kynar / Teflon Liquid End, 15.8 gpd, max psi 45, shipping weight 28 pounds |
|
PZiG-1000-FTCT-A** |
Kynar / Teflon Liquid End, 15.8 gpd, max psi 45, shipping weight 28 pounds |
|
PZiG-1300-VTCE |
PVC / EPDM Liquid End, 20.6 gpd, max psi 30, shipping weight 28 pounds |
|
PZiG-1300-VTCF |
PVC / Viton Liquid End, 20.6 gpd, max psi 30, shipping weight 28 pounds |
|
PZiG-1300-VTCF-V* |
PVC / Viton Liquid End, 20.6 gpd, max psi 30, shipping weight 28 pounds |
|
PZiG-1300-FTCT |
Kynar / Teflon Liquid End, 20.6 gpd, max psi 30, shipping weight 28 pounds |
|
PZiG-1300-FTCT-A** |
Kynar / Teflon Liquid End, 20.6 gpd, max psi 30, shipping weight 28 pounds |
|
Pump is furnished with cord, plug, plus a four-pin signal cable |
|
|
and an eight-pin signal cable. No piping accessories included |
|
|
except for Material Code FTCT-A |
|
|
* High Viscosity Model 1000 CPS; 50 CPS Other Models |
|
|
** A Models Include: Foot Valve Strainer, Anti-siphon Check Valve and Teflon Hose/Tubing |
|
|
† Material Code FTCT-A has maximum pressure of 75 PSI due to limit of tubing |
|
|
TANKS FOR "PZ" PUMPS |
|
|
ST-30 |
30 Gallon self supporting polyethylene tank top mounting |
|
ST-50 |
50 Gallon self supporting polyethylene tank top mounting |
|
Click here to view or download a Technical Bulletin on these products. |
|
With few exceptions, you get free shipping on orders over $100.00, lower 48 States of the USA.
We accept Visa, MasterCard, American Express, Discover, and PayPal.
To Get Members Only Benefits, Click "Save Time On Your Next Visit" at Check Out.
Instant message me with your questions.
IF THIS PRODUCT IS NOT AVAILABLE FOR DIRECT PURCHASE, CLICK HERE TO CONTACT US FOR A QUOTATION.
