Quantrol Filter Housing QFP1X20-3/4 and Filters

FOR CURRENT DISCOUNTS, SEE TERMS OF SALE TAB (LEFT).
With few exceptions, you get free shipping on orders over $100.00, lower 48 States of the USA.
We accept Visa, MasterCard, American Express, Discover, and PayPal.

To Get Members Only Benefits, Click "Save Time On Your Next Visit" at Check Out.

Instant message me with your questions.

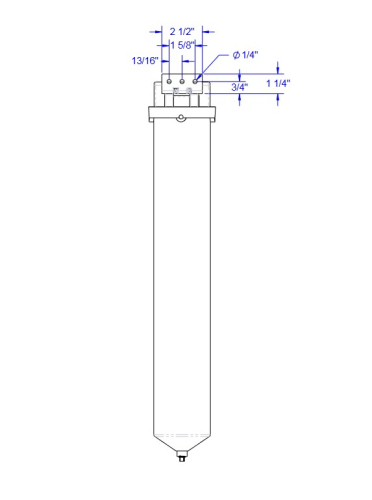

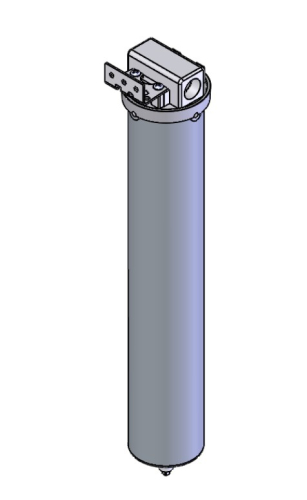

THE QUANTROL 20" CARTRIDGE HOUSING QFP1X20-3/4 (PLUS FILTERS). All are made in the USA.

WE KNOW THERE ARE TWO PAGES FOR THE QFP1X20-3/4 HOUSING. USE THIS PAGE FOR BUNDLING WITH FILTERS.

THE CARTRIDGES ARE 2 & 1/2" IN DIAMETER.

This system is recommended for industrial filtration of water-like fluids and oils only and is not intended for potable or drinking water.

CONTACT US FOR PRICE QUOTATION, IF DIRECT PURCHASE IS INACTIVE, OR IF YOU WANT SOMETHING CUSTOM.

The Quantrol QFP Series Band Clamp Filter Housings are designed for commercial and industrial liquid filtration applications. These multi-cartridge filter housings allow for flow rates up to 660 GPM. Universal seal cups and compression plates allow for use of DOE, 222/Flat and 222/Fin style cartridges.

The Quantrol 20" Cartridge Housing Model Number QFP1X20-3/4 uses one filter at one time.

Features:
• Heavy Duty 316 SS Construction
• External Poly-Coat Finish
• Easy Access Band Clamp Closure
• Welded on Mounting/Support Legs
• Gauge/Drain & Vent Ports Standard
• Manufactured in the USA
• Buna O-Ring
• Housings rated at 150 psi, 250°F
• Adjustable Top Plate with Spring Seal Assemblies

The Options available on this page are:

20" Filter Housing - Options are;

• None - Select none if you do not wish to purchase the QFP1X20-3/4.

• QFP1X20-3/4 - Described as 316SS 20" Single Cartridge Filter Housing 3/4" NPT, DOE Cartridge, 10 GPM, 300 PSI, 200°F


Pressure Gauge Kit:

Options are;

• None - Select none if you do not wish to purchase the PGK-160-3/4.

• PGK-160-3/4 - Consisting of Pressure Gauge Set of 2, 0-160 PSI, with 3/4" installation fittings. Use with 3/4" QFP1X Series Single Cartridge Housings.

20" Filter Cartridges - Sold 15 Per Case in Case Quantity Only. Pricing is CASE Pricing.

First Choice is Tin Core - Rated to 200 F

Options under Tin Core are;

• None - Select none if you do not wish to purchase Tin Core Filters

• SWTC1-20, 1 MICRON WOUND, TIN CORE, 20", 15/CS

• SWTC5-20, 5 MICRON WOUND, TIN CORE, 20", 15/CS
• SWTC10-20, 10 MICRON WOUND, TIN CORE, 20", 15/CS
• SWTC20-20, 20 MICRON WOUND, TIN CORE, 20", 15/CS
• SWTC30-20, 30 MICRON WOUND, TIN CORE, 20", 15/CS
• SWTC50-20, 50 MICRON WOUND, TIN CORE, 20", 15/CS

Second Choice is Poly Core - Rated to 140 F

Options under Poly Core are;

• None - Select none if you do not wish to purchase Poly Core Filters
• SWPC1-20, 1 MICRON WOUND, POLY CORE, 20", 15/CS
• SWPC5-20, 5 MICRON WOUND, POLY CORE, 20", 15/CS
• SWPC10-20, 10 MICRON WOUND, POLY CORE, 20", 15/CS
• SWPC20-20, 20 MICRON WOUND, POLY CORE, 20", 15/CS
• SWPC30-20, 30 MICRON WOUND, POLY CORE, 20", 15/CS
• SWPC50-20, 50 MICRON WOUND, POLY CORE, 20", 15/CS

Third Choice is Cotton Wound Tin Core - Rated to 300 F

Options under Cotton Wound Tin Core are;

• None - Select none if you do not wish to purchase Cotton Wound Tin Core Filters
• CWTC1-20, 1 MICRON NATURAL COTTON WOUND, TIN CORE, 20", 15/CS
• CWTC5-20, 5 MICRON NATURAL COTTON WOUND, TIN CORE, 20", 15/CS
• CWTC10-20, 10 MICRON NATURAL COTTON WOUND, TIN CORE, 20", 15/CS
• CWTC20-20, 20 MICRON NATURAL COTTON WOUND, TIN CORE, 20", 15/CS
• CWTC30-20, 30 MICRON NATURAL COTTON WOUND, TIN CORE, 20", 15/CS
• CWTC50-20, 50 MICRON NATURAL COTTON WOUND, TIN CORE, 20", 15/CS

Prices for the Continental 48 states of the USA only.
