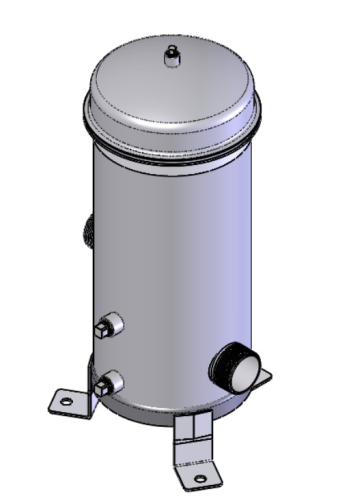

THE QUANTROL 10" CARTRIDGE HOUSING QFP5X1-304 (PLUS FILTERS). All are made in the USA.

WE KNOW THERE ARE TWO PAGES FOR THE QFP5X1-304 HOUSING. USE THIS PAGE FOR BUNDLING WITH FILTERS.

THE CARTRIDGES ARE 2 & 1/2" IN DIAMETER.

This system is recommended for industrial filtration of water-like fluids and oils only and is not intended for potable or drinking water.

CONTACT US FOR PRICE QUOTATION, IF DIRECT PURCHASE IS INACTIVE, OR IF YOU WANT SOMETHING CUSTOM.

The Quantrol QFP Series Band Clamp Filter Housings are designed for commercial and industrial liquid filtration applications. These multi-cartridge filter housings allow for flow rates up to 660 GPM. Universal seal cups and compression plates allow for use of DOE, 222/Flat and 222/Fin style cartridges.

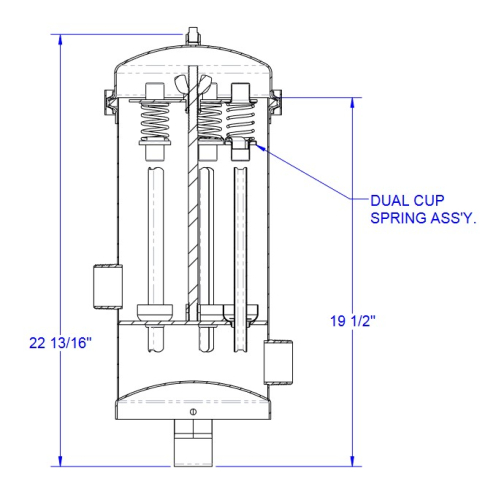

The Quantrol 10" Cartridge Housing Model Number QFP5X1-304 uses five filters at one time.

Features:

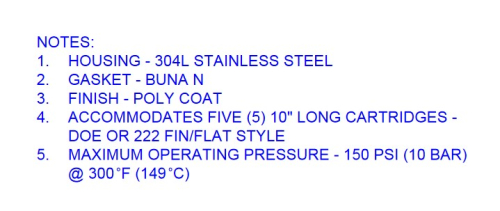

• Heavy Duty 304 SS Construction
• External Poly-Coat Finish
• Easy Access Band Clamp Closure

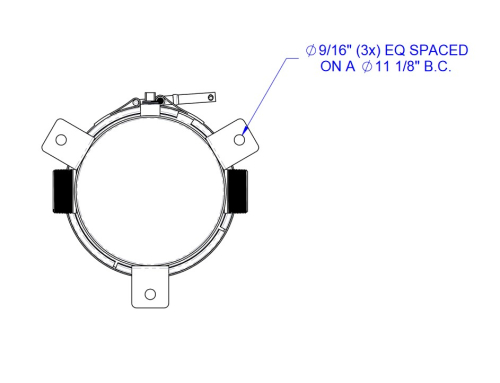

• Welded on Mounting/Support Legs
• Gauge/Drain & Vent Ports Standard
• Manufactured in the USA
• Buna O-Ring
• Housings rated at 150 psi, 250°F
• Adjustable Top Plate with Spring Seal Assemblies

The Options available on this page are:

10" Filter Housing - Options are;

• None - Select none if you do not wish to purchase the QFP5X1-304.

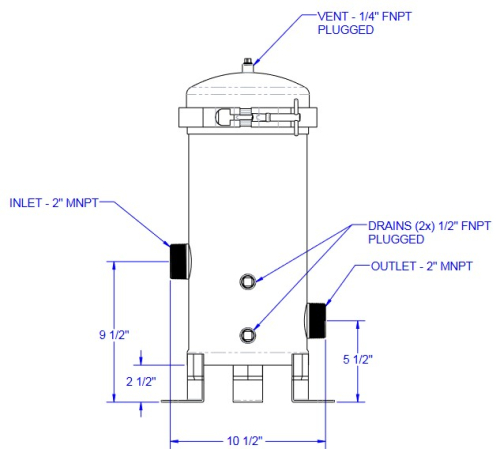

• QFP5X1-304 - Described as CARTRIDGE HOUSING 5X10" 304SS CLAMP LEGS 2" MNPT, 25 GPM, 150 PSI, 250°F


Filter Service Kit:

Options are;

• None - Select none if you do not wish to purchase the FSK-1/2.

• FSK-1/2 - Consists of Filter Service Kit for QFP Multi-Round Housings. Includes: Pressure Gauges, Drain Valves, Air Purge/Pressure Relief & Installation Fittings - CLICK HERE for more on the FSK-1/2 Filter Service Kit.


10" Filter Cartridges - Sold 30 Per Case in Case Quantity Only. Pricing is CASE Pricing.

First Choice is Tin Core - Rated to 200 F

Options under Tin Core are;

• None - Select none if you do not wish to purchase Tin Core Filters

• SWTC1-10, 1 MICRON WOUND, TIN CORE, 10", 30/CS

• SWTC5-10, 5 MICRON WOUND, TIN CORE, 10", 30/CS
• SWTC10-10, 10 MICRON WOUND, TIN CORE, 10", 30/CS
• SWTC20-10, 20 MICRON WOUND, TIN CORE, 10", 30/CS
• SWTC30-10, 30 MICRON WOUND, TIN CORE, 10", 30/CS
• SWTC50-10, 50 MICRON WOUND, TIN CORE, 10", 30/CS

Second Choice is Poly Core - Rated to 140 F

Options under Poly Core are;

• None - Select none if you do not wish to purchase Poly Core Filters
• SWPC1-10, 1 MICRON WOUND, POLY CORE, 10", 30/CS
• SWPC5-10, 5 MICRON WOUND, POLY CORE, 10", 30/CS
• SWPC10-10, 10 MICRON WOUND, POLY CORE, 10", 30/CS
• SWPC20-10, 20 MICRON WOUND, POLY CORE, 10", 30/CS
• SWPC30-10, 30 MICRON WOUND, POLY CORE, 10", 30/CS
• SWPC50-10, 50 MICRON WOUND, POLY CORE, 10", 30/CS

Third Choice is Cotton Wound Tin Core - Rated to 300 F

Options under Cotton Wound Tin Core are;

• None - Select none if you do not wish to purchase Cotton Wound Tin Core Filters
• CWTC1-10, 1 MICRON NATURAL COTTON WOUND, TIN CORE, 10", 30/CS
• CWTC5-10, 5 MICRON NATURAL COTTON WOUND, TIN CORE, 10", 30/CS
• CWTC10-10, 10 MICRON NATURAL COTTON WOUND, TIN CORE, 10", 30/CS
• CWTC20-10, 20 MICRON NATURAL COTTON WOUND, TIN CORE, 10", 30/CS
• CWTC30-10, 30 MICRON NATURAL COTTON WOUND, TIN CORE, 10", 30/CS
• CWTC50-10, 50 MICRON NATURAL COTTON WOUND, TIN CORE, 10", 30/CS

Prices for the Continental 48 states of the USA only.
