Quantrol Bag Filter Housing QFPBH2-304 and Filters
FOR CURRENT DISCOUNTS, SEE TERMS OF SALE TAB (LEFT).
With few exceptions, you get free shipping on orders over $100.00, lower 48 States of the USA.
We accept Visa, MasterCard, American Express, Discover, and PayPal.
To Get Members Only Benefits, Click "Save Time On Your Next Visit" at Check Out.
Instant message me with your questions.
THE QUANTROL SIZE #2 BAG HOUSING QFPBH2-304 (PLUS FILTERS). All are made in the USA.
WE KNOW THERE ARE TWO PAGES FOR THE QFPBH2-304 HOUSING. USE THIS PAGE FOR BUNDLING WITH FILTERS.
This system is recommended for industrial filtration of water-like fluids and oils only and is not intended for potable or drinking water.
CONTACT US FOR PRICE QUOTATION, IF DIRECT PURCHASE IS INACTIVE, OR IF YOU WANT SOMETHING CUSTOM.
QFP Series Bag Filter Housings offer an economical solution to your commercial and industrial bag filtration applications. These heavy-duty housings are designed for maximum durability. The swing bolt closure with eye hooks allows for quick and easy bag change outs. Housings are available for size #1 or #2 Filter Bags in your choice of 304LSS, 316L SS, or carbon steel.

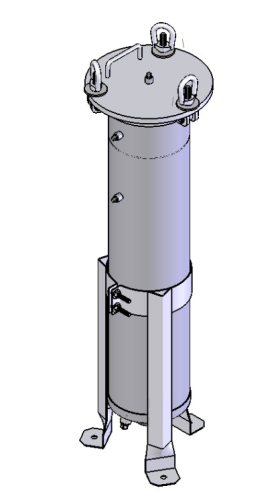

The Quantrol Size #2 Bag Housing Model Number QFPBH2-304 uses a single bag.
Features:
• Swing Bolt Closure
• Adjustable Stainless Steel Leg Assembly

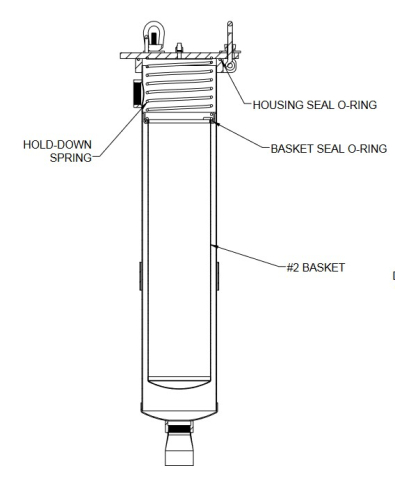

• SS Support Basket(s) with 1/8” Perforations
• Buna N Gasket

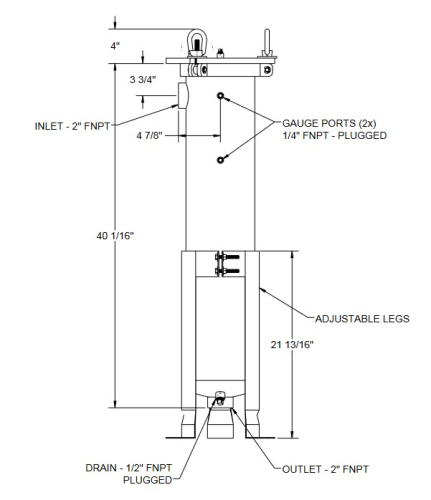

• 1/4” Vent and Gauge Ports
• Drain Port

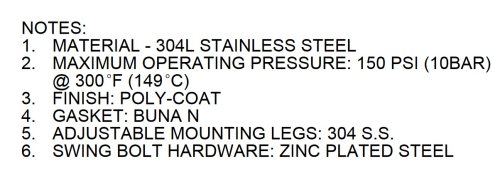

• Housings rated at 150 psi, 300°F
• Manufactured in the USA
THE QFPBH2-304 IS OUR MOST POPULAR BAG FILTER MODEL. TO SEE OTHER BAG FILTER HOUSING THAT WE OFFER, CLICK HERE.
The Options available on this page are:
Bag Filter Housing - Options are;
- None - Select none if you do not wish to purchase the QFPBH2-304
- QFPBH2-304 - Described as Bag Housing SB #2 304 SS 2" FNPT, 120 GPM, 150 PSI, 300°F
Filter Service Kit:
Options are;
- None - Select none if you do not wish to purchase the FSK-1/4.
- FSK-1/4 - Filter Service Kit for QFPBH Series Bag Filter Housings. Includes: Pressure Gauges, Drain Valves, Air Purge/Pressure Relief & Installation Fittings - CLICK HERE for more on the FSK-1/4 Filter Service Kit.
Size #2 Filter Bags - Sold 50 Per Case in Case Quantity Only. Pricing is CASE Pricing.
Options under Size #2 Filter Bags;
- None - Select none if you do not wish to purchase Filter Bags
- PE1P2SH, SZ. #2, 1 MIC. POLYESTER BAG, CARBON STEEL RING W/ HANDLE, 50/CS
- PE5P2SH, SZ. #2, 5 MIC. POLYESTER BAG, CARBON STEEL RING W/ HANDLE, 50/CS
- PE10P2SH, SZ. #2, 10 MIC. POLYESTER BAG, CARBON STEEL RING W/ HANDLE, 50/CS
- PE25P2SH, SZ. #2, 25 MIC. POLYESTER BAG, CARBON STEEL RING W/ HANDLE, 50/CS
- PE50P2SH, SZ. #2, 50 MIC. POLYESTER BAG, CARBON STEEL RING W/ HANDLE, 50/CS
- PE100P2SH, SZ. #2, 100 MIC. POLYESTER BAG, CARBON STEEL RING W/ HANDLE, 50/CS
- PE200P2SH, SZ. #2, 200 MIC. POLYESTER BAG, CARBON STEEL RING W/ HANDLE, 50/CS
Tip: When I used to work in the field, I would always put a magnetic business card into the bag in one of my installations. That is very helpful in removing magnetic Ferrous Oxide that can flow through the larger porosity filter bags.
Prices for the Continental 48 states of the USA only.
