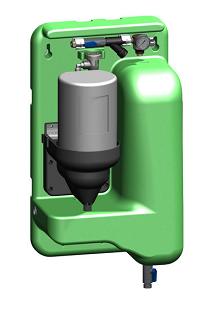

Solv-Ultima™ 75: No Power Required
Drumless water treatment without electricity. This unit uses a float-weight and a mechanical solenoid valve system to automatically reconstitute solid chemical concentrates on-site.
Operation
When the level of mixed chemical in the reservoir drops, (due to chemical pump draw), the float-weight activates the solenoid valve allowing water to spray up into the bottle of chemical. Water sprays up & erodes, dissolves, & mixes solid chemical concentrate, which gravity-drains into the self-contained reservoir/housing, until the float reaches the shut-off height & closes the solenoid. This fill, empty, & refill cycle will continue automatically, based on system demand.
This product disolves Solid Concentrate chemical for use.
To view or download a PDF product bulletin, Click Here.
If you are in doubt regarding which dissolving system best meet your needs, Click Here to view or download our selection chart.
Solid form treatment
- Reconstitute on site
- 1-gallon plastic bottles
- Complete product line
- Disposal- throw in trash
- No drums to handle
- No chemical exposure
Mixing Bowl
- Molded mixing bowl
- Spray safety deactivation tab
- Spray nozzle (exposed)
- Product retention screen
Operational Components
- Float weight
- Water supply to solenoids
- Float-weight harness
- S-hook connectors
- Mechanical solenoid
Liquid-End Connections & Fittings
- Make-up line/water supply to board
- Isolation valve for water supply
- In-line Y-strainer/filter
- Pressure guage
- Pressure regulator (adjustable)
- Isolation valve (chemical supply)
- Suction tube & fitting (to pump)
