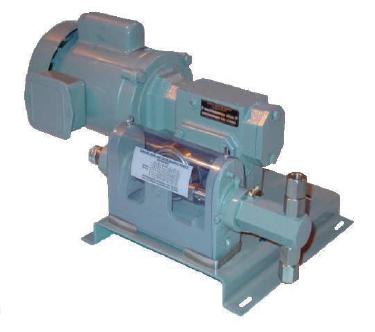

A & F MACHINE PRODUCTS CO. V-10 (V10) SIMPLEX 3/8 INCH DIAMETER PISTON  PUMPS

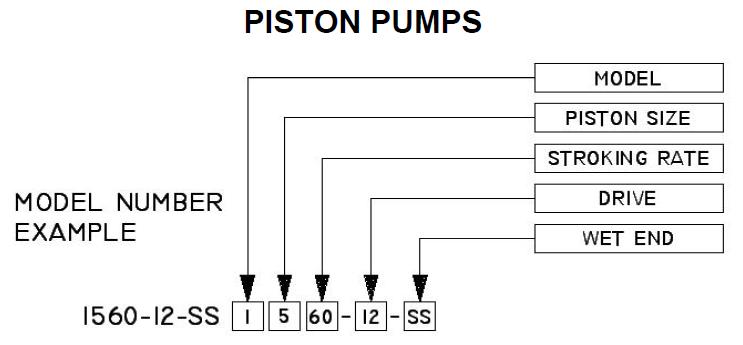

V-10 Pumps on this page are of the series: Model Number start is a 13__-__-__.

FREE UPS GOUND SHIPPING TO THE LOWER 48 STATES OF THE USA ON ALL ORDERS OVER $100.00.

FEATURES:

GENERAL INFORMATION
The V-10 is a high pressure, low volume, reciprocating plunger, positive displacement chemical metering pump. It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry, and related applications where a controlled volume of chemical treatment is required.

The V-10 Simplex 3/8 inch diameter piston pump is rated at 1000 psig.

This pump is also available with two pump heads, three pump heads, and four pump heads. We can get you a custom quotation on those if you Contact Us Here.

CONSTRUCTION
The V-10 is designed for trouble free operation with a minimum of maintenance. Precision inline boring of the base casting insures exact alignment of the drive mechanism and the piston head assembly, minimizing wear. The drive mechanism is a heavy duty speed reducer, available in a number of ratios. Any 56C frame motor can be mounted on the heavy duty speed reducer making it easy to match the V-10 pump to special environments or electrical characteristics. The V-10 pump head is precision machined and has a ground and polished piston and double ball check valves on the inlet and outlet. The pump head comes standard in carbon steel but is available in various grades of stainless steel and the packing seals are available in Buna N, Viton, and Teflon. V-10 pump heads are available in numerous piston sizes from 1/4” to 2” to cover various pumping ranges and all are interchangeable on the same pump base casting. The pump is also available with multiple heads.

We sell these piston pumps in various other piston sizes. Here are those hyperlinks:

• 1 1/2 inch V-10 piston pump

• 1 inch V-10 piston pump

• 1/2 inch V-10 piston pump
• 1/4 inch V-10 piston pump
• 2 inch V-10 piston pump
• 5/8 inch V-10 piston pump

To view or download a PDF bulletin on these products, CLICK HERE.

Prices for the Continental 48 states of the USA only.

MODEL:

For a price on a Duplex, Triplex, or Quad Pump, CONTACT US.

PISTON SIZE:

3/8" DIA PISTON, 1000 PSI, FULL STROKE OUTPUT:

56C FLANG MOUNTED DRIVES:

TENV - TOTALLY ENCLOSED, NON-VENTILATED

TEFC - TOTALLY ENCLOSED, FAN COOLED

EPFC - EXPLOSION PROOF, FAN COOLED

FLANGE MOUNT PUMPS LESS MOTOR ARE AVAILABLE FOR MOUNTING YOUR OWN 56C FRAME 1750 RPM MOTOR VERTICAL MOTOR MOUNT OPTION AVAILABLE ON 18-30-60 RPM V-10 PUMPS. CONTACT US FOR PRICING ON THIS OPTION.

WET END:

 Model V-10 Piston Pumps that you can build and buy from this page are:

• 1360-12
• 1360-12-SS
• 1360-12-S6
• 1360-12-C20
• 1360-12-HC
• 1360-12V
• 1360-12V-SS
• 1360-12V-S6
• 1360-12V-C20
• 1360-12V-HC
• 1360-13
• 1360-13-SS
• 1360-13-S6
• 1360-13-C20
• 1360-13-HC
• 1360-14
• 1360-14-SS
• 1360-14-S6
• 1360-14-C20
• 1360-14-HC
• 1360-14V
• 1360-14V-SS
• 1360-14V-S6
• 1360-14V-C20
• 1360-14V-HC
• 1360-15
• 1360-15-SS
• 1360-15-S6
• 1360-15-C20
• 1360-15-HC
• 1360-15V
• 1360-15V-SS
• 1360-15V-S6
• 1360-15V-C20
• 1360-15V-HC
• 1360-16
• 1360-16-SS
• 1360-16-S6
• 1360-16-C20
• 1360-16-HC
• 1360-17
• 1360-17-SS
• 1360-17-S6
• 1360-17-C20
• 1360-17-HC
• 1360-18
• 1360-18-SS
• 1360-18-S6
• 1360-18-C20
• 1360-18-HC
• 1360-19
• 1360-19-SS
• 1360-19-S6
• 1360-19-C20
• 1360-19-HC
• 1360-20
• 1360-20-SS
• 1360-20-S6
• 1360-20-C20
• 1360-20-HC

• 1330-12
• 1330-12-SS
• 1330-12-S6
• 1330-12-C20
• 1330-12-HC
• 1330-12V
• 1360-12V-SS
• 1330-12V-S6
• 1330-12V-C20
• 1330-12V-HC
• 1330-13
• 1330-13-SS
• 1330-13-S6
• 1330-13-C20
• 1330-13-HC
• 1330-14
• 1330-14-SS
• 1330-14-S6
• 1330-14-C20
• 1330-14-HC
• 1330-14V
• 1330-14V-SS
• 1330-14V-S6
• 1330-14V-C20
• 1330-14V-HC
• 1330-15
• 1330-15-SS
• 1330-15-S6
• 1330-15-C20
• 1330-15-HC
• 1330-15V
• 1330-15V-SS
• 1330-15V-S6
• 1330-15V-C20
• 1330-15V-HC
• 1330-16
• 1330-16-SS
• 1330-16-S6
• 1330-16-C20
• 1330-16-HC
• 1330-17
• 1330-17-SS
• 1330-17-S6
• 1330-17-C20
• 1330-17-HC
• 1330-18
• 1330-18-SS
• 1330-18-S6
• 1330-18-C20
• 1330-18-HC
• 1330-19
• 1330-19-SS
• 1330-19-S6
• 1330-19-C20
• 1330-19-HC
• 1330-20
• 1330-20-SS
• 1330-20-S6
• 1330-20-C20
• 1330-20-HC

• 1318-12
• 1318-12-SS
• 1318-12-S6
• 1318-12-C20
• 1318-12-HC
• 1318-12V
• 1318-12V-SS
• 1318-12V-S6
• 1318-12V-C20
• 1318-12V-HC
• 1318-13
• 1318-13-SS
• 1318-13-S6
• 1318-13-C20
• 1318-13-HC
• 1318-14
• 1318-14-SS
• 1318-14-S6
• 1318-14-C20
• 1318-14-HC
• 1318-14V
• 1318-14V-SS
• 1318-14V-S6
• 1318-14V-C20
• 1318-14V-HC
• 1318-15
• 1318-15-SS
• 1318-15-S6
• 1318-15-C20
• 1318-15-HC
• 1318-15V
• 1318-15V-SS
• 1318-15V-S6
• 1318-15V-C20
• 1318-15V-HC
• 1318-16
• 1318-16-SS
• 1318-16-S6
• 1318-16-C20
• 1318-16-HC
• 1318-17
• 1318-17-SS
• 1318-17-S6
• 1318-17-C20
• 1318-17-HC
• 1318-18
• 1318-18-SS
• 1318-18-S6
• 1318-18-C20
• 1318-18-HC
• 1318-19
• 1318-19-SS
• 1318-19-S6
• 1318-19-C20
• 1318-19-HC
• 1318-20
• 1318-20-SS
• 1318-20-S6
• 1318-20-C20
• 1318-20-HC

• 1312-12
• 1312-12-SS
• 1312-12-S6
• 1312-12-C20
• 1312-12-HC
• 1312-12V
• 1312-12V-SS
• 1312-12V-S6
• 1312-12V-C20
• 1312-12V-HC
• 1312-13
• 1312-13-SS
• 1312-13-S6
• 1312-13-C20
• 1312-13-HC
• 1312-14
• 1312-14-SS
• 1312-14-S6
• 1312-14-C20
• 1312-14-HC
• 1312-14V
• 1312-14V-SS
• 1312-14V-S6
• 1312-14V-C20
• 1312-14V-HC
• 1312-15
• 1312-15-SS
• 1312-15-S6
• 1312-15-C20
• 1312-15-HC
• 1312-15V
• 1312-15V-SS
• 1312-15V-S6
• 1312-15V-C20
• 1312-15V-HC
• 1312-16
• 1312-16-SS
• 1312-16-S6
• 1312-16-C20
• 1312-16-HC
• 1312-17
• 1312-17-SS
• 1312-17-S6
• 1312-17-C20
• 1312-17-HC
• 1312-18
• 1312-18-SS
• 1312-18-S6
• 1312-18-C20
• 1312-18-HC
• 1312-19
• 1312-19-SS
• 1312-19-S6
• 1312-19-C20
• 1312-19-HC
• 1312-20
• 1312-20-SS
• 1312-20-S6
• 1312-20-C20
• 1312-20-HC

• 1306-12
• 1306-12-SS
• 1306-12-S6
• 1306-12-C20
• 1306-12-HC
• 1306-12V
• 1306-12V-SS
• 1306-12V-S6
• 1306-12V-C20
• 1306-12V-HC
• 1306-13
• 1306-13-SS
• 1306-13-S6
• 1306-13-C20
• 1306-13-HC
• 1306-14
• 1306-14-SS
• 1306-14-S6
• 1306-14-C20
• 1306-14-HC
• 1306-14V
• 1306-14V-SS
• 1306-14V-S6
• 1306-14V-C20
• 1306-14V-HC
• 1306-15
• 1306-15-SS
• 1306-15-S6
• 1306-15-C20
• 1306-15-HC
• 1306-15V
• 1306-15V-SS
• 1306-15V-S6
• 1306-15V-C20
• 1306-15V-HC
• 1306-16
• 1306-16-SS
• 1306-16-S6
• 1306-16-C20
• 1306-16-HC
• 1306-17
• 1306-17-SS
• 1306-17-S6
• 1306-17-C20
• 1306-17-HC
• 1306-18
• 1306-18-SS
• 1306-18-S6
• 1306-18-C20
• 1306-18-HC
• 1306-19
• 1306-19-SS
• 1306-19-S6
• 1306-19-C20
• 1306-19-HC
• 1306-20
• 1306-20-SS
• 1306-20-S6
• 1306-20-C20
• 1306-20-HC

• 1301-12
• 1301-12-SS
• 1301-12-S6
• 1301-12-C20
• 1301-12-HC
• 1301-12V
• 1301-12V-SS
• 1301-12V-S6
• 1301-12V-C20
• 1301-12V-HC
• 1301-13
• 1301-13-SS
• 1301-13-S6
• 1301-13-C20
• 1301-13-HC
• 1301-14
• 1301-14-SS
• 1301-14-S6
• 1301-14-C20
• 1301-14-HC
• 1301-14V
• 1301-14V-SS
• 1301-14V-S6
• 1301-14V-C20
• 1301-14V-HC
• 1301-15
• 1301-15-SS
• 1301-15-S6
• 1301-15-C20
• 1301-15-HC
• 1301-15V
• 1301-15V-SS
• 1301-15V-S6
• 1301-15V-C20
• 1301-15V-HC
• 1301-16
• 1301-16-SS
• 1301-16-S6
• 1301-16-C20
• 1301-16-HC
• 1301-17
• 1301-17-SS
• 1301-17-S6
• 1301-17-C20
• 1301-17-HC
• 1301-18
• 1301-18-SS
• 1301-18-S6
• 1301-18-C20
• 1301-18-HC
• 1301-19
• 1301-19-SS
• 1301-19-S6
• 1301-19-C20
• 1301-19-HC
• 1301-20
• 1301-20-SS
• 1301-20-S6
• 1301-20-C20
• 1301-20-HC
