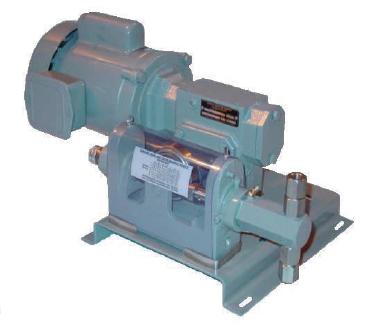

A & F MACHINE PRODUCTS CO. V-10 (V10) SIMPLEX 5/8 INCH DIAMETER PISTON PUMPS

FREE UPS GOUND SHIPPING TO THE LOWER 48 STATES OF THE USA ON ALL ORDERS OVER $100.00.

V-10 Pumps on this page are of the series: Model Number start is a 15__-__-__.

FEATURES:

GENERAL INFORMATION
The V-10 is a high pressure, low volume, reciprocating plunger, positive displacement chemical metering pump. It is ideal for use in chemical feed to boilers, waste water treatment, the pulp and paper industry, and related applications where a controlled volume of chemical treatment is required.

The V-10 Simplex 5/8 inch diameter piston pump is rated at 1000 psig.

This pump is also available with two pump heads, three pump heads, and four pump heads. We can get you a custom quotation on those if you Contact Us Here.

CONSTRUCTION
The V-10 is designed for trouble free operation with a minimum of maintenance. Precision inline boring of the base casting insures exact alignment of the drive mechanism and the piston head assembly, minimizing wear. The drive mechanism is a heavy duty speed reducer, available in a number of ratios. Any 56C frame motor can be mounted on the heavy duty speed reducer making it easy to match the V-10 pump to special environments or electrical characteristics. The V-10 pump head is precision machined and has a ground and polished piston and double ball check valves on the inlet and outlet. The pump head comes standard in carbon steel but is available in various grades of stainless steel and the packing seals are available in Buna N, Viton, and Teflon. V-10 pump heads are available in numerous piston sizes from 1/4” to 2” to cover various pumping ranges and all are interchangeable on the same pump base casting. The pump is also available with multiple heads.

We sell these piston pumps in various other piston sizes. Here are those hyperlinks:

To view or download a PDF bulletin on these products, CLICK HERE.

Prices for the Continental 48 states of the USA only.

MODEL:

1	SIMPLEX-SINGLE DRIVE TO ONE PUMP HEAD
2	DUPLEX-SINGLE DRIVE TO TWO PUMP HEADS
3	TRIPLEX-SINGLE DRIVE TO THREE PUMP HEADS
4	QUAD-SINGLE DRIVE TO FOUR PUMP HEADS

For a price on a Duplex, Triplex, or Quad Pump, CONTACT US.

PISTON SIZE:

2	1/4" DIAMETER
3	3/8" DIAMETER
4	1/2" DIAMETER
5	5/8" DIAMETER
7	1 1/2" DIAMETER
8	1" DIAMETER
9	2" DIAMETER

5/8" DIA PISTON, 1000 PSI, FULL STROKE OUTPUT:

STROKE CODE	ML/MIN	GPH	GPD	STROKE RATE
01	6	0.1	2.4	ONE STROKE PER MINUTE
06	36	0.6	14.4	SIX STROKES PER MINUTE
12	72	1.2	28.8	TWELVE STROKES PER MINUTE
18	108	1.8	43.2	EIGHTEEN STROKES PER MINUTE
30	180	3	72	THIRTY STROKES PER MINUTE
60	360	6	144	SIXTY STROKES PER MINUTE

56C FLANG MOUNTED DRIVES:

12	1/3HP 120/240VAC TEFC 60HZ 1PH
12V	1/2HP 120/240VAC TEFC 60HZ 1PH
13	1/2HP 120/240VAC EPFC 60HZ 1PH
14	1/4HP 90VDC TENV PERMANENT MAGNET
14V	1/2HP 90VDC TEFC PERMANENT MAGNET
15	1/3HP 240/480VAC TEFC 60HZ 3PH
15V	1/2HP 240/480VAC TEFC 60HZ 3PH
16	1/2HP 240/480VAC EPFC 60HZ 3PH
17	1/3HP 575VAC TEFC 60HZ 3PH
18	1/2HP 115/230VAC TEFC 50/60HZ 1PH
19	1/2HP 230/460VAC TENV INVERTER DUTY
20	1/2HP 115/230VAC TEFC SEVERE DUTY

TENV - TOTALLY ENCLOSED, NON-VENTILATED

TEFC - TOTALLY ENCLOSED, FAN COOLED

EPFC - EXPLOSION PROOF, FAN COOLED

FLANGE MOUNT PUMPS LESS MOTOR ARE AVAILABLE FOR MOUNTING YOUR OWN 56C FRAME 1750 RPM MOTOR VERTICAL MOTOR MOUNT OPTION AVAILABLE ON 18-30-60 RPM V-10 PUMPS. CONTACT US FOR PRICING ON THIS OPTION.

WET END:
