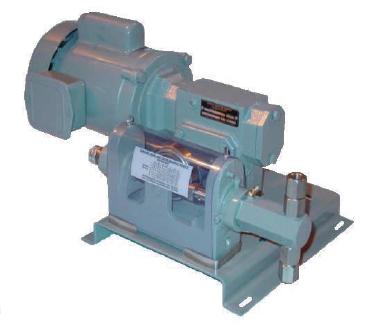

A & F MACHINE PRODUCTS CO. V-5 & V-10 DRIVE ASSEMBLIES
FREE UPS GOUND SHIPPING TO THE LOWER 48 STATES OF THE USA ON ALL ORDERS OVER $100.00.
Model V-5 and V-10 Piston Pump Drive Assemblies that you can buy from this page are:
| ITEM | PART # | DESCRIPTION |
|---|---|---|
| 1 | 5K155A** | 12 RPM DRIVE MOTOR & GEAR ASSEMBLY |
| 5K156A** | 6 RPM DRIVE MOTOR & GEAR ASSEMBLY | |
| 5K157A** | 18 RPM DRIVE MOTOR & GEAR ASSEMBLY | |
| 1A | 5K151** | DRIVE MOTOR ONLY FOR GEAR ASSEMBLY |
| 1B | 1B-6 | 6 RPM DRIVE GEAR ASSEMBLY ONLY |
| 1B-12 | 12 RPM DRIVE GEAR ASSEMBLY ONLY | |
| 1B-18 | 18 RPM DRIVE GEAR ASSEMBLY ONLY | |
| 2 | 1101 | DRIVE BEARING SUPPORT CAM |
| 2A | 1101-1 | 3/16 X 1 ROLLED DRIVE PIN (FOR 1101) |
| 2B | 1101-2 | 3/16 X 1 1/4 ROLLED DRIVE PIN (FOR 3L09CD) |
| 3 | 3L09 | SEALED DRIVE BEARING |
| 4 | 008-2 | RIGHT HAND BASE CASTING (STANDARD) |
| 008-2D | INSIDE CASTING ON DUPLEX ASSEMBLY | |
| 008-2L | LEFT HAND BASE CASTING (V-10 DUPLEX) | |
| 4A | 008-4 | 1/4-20 X 5/8" ALLEN CAP SCREW (2 REQUIRED) |
| 4B | 008-5 | 5/8" OD X 1/2" ID X 1/2" LONG OILITE BEARING |
| 008-6 | 5/8" OD X .485" ID X 1/2" LONG OILITE BEARING | |
| 4C | 006-2 | DRIVE BEARING GREASE FITTING |
| 4D | 006-3 | GREASE TUBE |
| 4E | 006-2 | SLIDE BUSHING GREASE FITTING |
| 5 | 1102-1 | COVER SCREW (2 REQUIRED) |
| 6 | 1102 | CLEAR PLASTIC COVER (STANDARD) |
| 1102-D | CLEAR PLASTIC COVER (LEFT HAND) | |
| 1102-GC | STAINLESS STEEL GASKETED COVER | |
| 7 | 1102-2 | COVER CLIP (2 REQUIRED) |
| 8 | A-1097-1 | SIMPLEX OR DUPLEX SLIDE ASSEMBLY |
| 8A | 1100 | SLIDE ADJUSTMENT SCREW |
| 8B | 1099 | ADJUSTMENT SCREW LOCKNUT |
| 8C | A-1097 | SIMPLEX OR DUPLEX SLIDE |
| 8D | 1098 | SLIDE PIN |
| 9 | SLSD | SPRING LOADED SLIDE DEVICE |
| 12 | 009 | DUPLEX DRIVE SHAFT ASSEMBLY |
| 009-H | HYDRAULIC DUPLEX DRIVE SHAFT ASSEMBLY | |
| 13 | BPS | V-5 SIMPLEX BASE PLATE |
| BPD | V-5 DUPLEX BASE PLATE | |
| 13F | FBP | V-10 SIMPLEX & DUPLEX BASE PLATE |
| CD1 | 192A02-20:1 | 90 RPM COUPLING DRIVE SPEED REDUCER |
| 192A02-25:1 | 60 RPM COUPLING DRIVE SPEED REDUCER | |
| 192A02-50:1 | 30 RPM COUPLING DRIVE SPEED REDUCER | |
| 192A02-100:1 | 18 RPM COUPLING DRIVE SPEED REDUCER | |
| CD2 | 3L09 CD | DRIVE BEARING ASSEMBLY FOR 7/8" SHAFT |
| CD3 | L075 | 5/8" X 5/8" LOVEJOY FLEXIBLE COUPLING SET |
| CD4 | FCG | COUPLING GUARD |
| CD5 | VAS-CD | OUTPUT COUPLING & CAM FOR 7/8" SHAFT |
| VAS-CD-D | 7/8" X 1/2" COUPLING FOR TRIPLEX OR QUAD | |
| CD6 | MS | MOTOR SPACER (4 REQUIRED) |
| CD7 | MO-3 | 1PH 120/240 VAC 60HZ 1/2 HP EPFC 56 FRAME |
| MO-4 | 90 VDC 1/2 HP TEFC 56/56C FRAME | |
| MO-6 | 3PH 230/460 VAC 60HZ 1/2 HP EPFC 56 FRAME | |
| MO-7 | 3PH 230/460 VAC 60HZ 1/2 HP TEFC 56 FRAME | |
| MO-8 | 1PH 120/240 VAC 60HZ 1/2 HP TEFC 56 FRAME | |
| MO-12 | 1PH 120/240 VAC 60HZ 1/3 HP TEFC 56C FRAME | |
| MO-12V | 1PH 120/240 VAC 60HZ 1/2 HP TEFC 56C FRAME | |
| MO-13 | 1PH 120/230 VAC 60HZ 1/3 HP EPFC 56C FRAME | |
| MO-14 | 90 VDC 1/4 HP TEFC 56C FRAME | |
| MO-14V | 90 VDC 1/2 HP TEFC 56/56C FRAME | |
| MO-15 | 3PH 230/460 VAC 60HZ 1/3 HP TEFC 56C FRAME | |
| MO-15V | 3PH 230/460 VAC 60HZ 1/2 HP TEFC 56C FRAME | |
| MO-16 | 3PH 230/460 VAC 60HZ 1/2 HP EPFC 56C FRAME | |
| MO-17 | 3PH 575 VAC 60HZ 1/3 HP TEFC 56C FRAME | |
| MO-18 | 1PH 115/230 VAC 50/60HZ 1/2 HP TEFC 56C FRAME | |
| MO-19 | 3PH 230/460 VAC 1/2 HP TENV INVERTER DUTY 56C | |
| MO-20 | 1PH 120/240 VAC 60HZ 1/2 HP SEVERE DUTY 56C | |
| CD8 | BP-CD | COUPLING DRIVE BASE PLATE |
| CD9 | FMSR-60 | 60 RPM 56C FLANGED SPEED REDUCER |
| FMSR-30 | 30 RPM 56C FLANGED SPEED REDUCER | |
| FMSR-18 | 18 RPM 56C FLANGED SPEED REDUCER | |
| FMSR-12 | 12 RPM 56C FLANGED SPEED REDUCER | |
| FMSR-6 | 6 RPM 56C FLANGED SPEED REDUCER | |
| FMSR-1 | 1 RPM 56C FLANGED SPEED REDUCER |
** DISCONTINUED V-5 PARTS SOLD WITH THE FOLLOWING GEAR DRIVE MOTOR OPTIONS AS LONG AS SUPPLIES LAST!
|
MOTOR SUFFIX | GEAR DRIVE MOTOR OPTIONS (DISCONTINUED V-5) |
|---|---|
| ** -2 | 1PH 120 VAC 60HZ 1/4 HP TENV (STANDARD) |
| ** -5 | 3PH 230/460 VAC 60HZ 1/4 HP TENV |
|
** -9 |
1PH 120/240 VAC 50/60HZ 1/4 HP TENV |
FROM THE FACTORY AS OF 9/12/2013:
"On the 5K155A/5K156A/5K157A you have to add on the -2/-5/-9
On the 5K151 we do not have these motors available at all in the -2
But we do have it available with -5/-9"
Please contact us if you want us to email you a custom quotaion for what you want.
