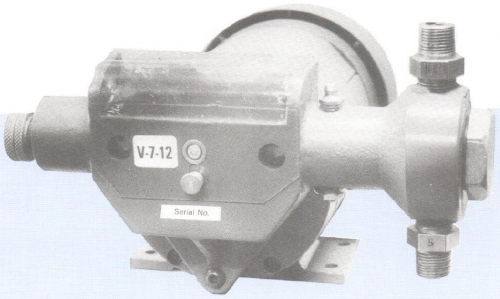

A & F MACHINE PRODUCTS CO. V-7 MINI PUMP PARTS
FREE UPS GOUND SHIPPING TO THE LOWER 48 STATES OF THE USA ON ALL ORDERS OVER $100.00.
To view, download, or print a blow up pump diagram showing all of the V-7 parts click here.
Model V-7 Diaphram Pump Parts that you can buy from this page are:
| ITEM | PART # | DESCRIPTION |
|---|---|---|
| 1 | VW-2 | 120 VAC 1PH 1/20TH HP 2 RPM GEAR MOTOR |
| VW-6 | 120 VAC 1PH 1/20TH HP 6 RPM GEAR MOTOR | |
| VW-12 | 120 VAC 1PH 1/20TH HP 12 RPM GEAR MOTOR | |
| VW-30 | 120 VAC 1PH 1/20TH HP 30 RPM GEAR MOTOR | |
| VW-60 | 120 VAC 1PH 1/20TH HP 2 RPM GEAR MOTOR | |
| 1A | 6K151 | REPLACEMENT VW MOTOR (SPECIFY GEAR HEAD RPM) |
| 1C | 1C-2 | 2 RPM VW GEAR HEAD ASSEMBLY |
| 1C-6 | 6 RPM VW GEAR HEAD ASSEMBLY | |
| 1C-12 | 12 RPM VW GEAR HEAD ASSEMBLY | |
| 1C-30 | 30 RPM VW GEAR HEAD ASSEMBLY | |
| 1C-60 | 60 RPM VW GEAR HEAD ASSEMBLY | |
| 2 | 097 | SLIDE ARM ASSEMBLY |
| 3 | 08-P | V-7 PUMP CASTING |
| 3A | 006-2 | SLIDE GREASE FITTING |
| 4* | 02D-S | 303SS DISCHARGE CHECK VALVE ASSEMBLY |
| 5* | 02S-S | 303SS SUCTION CHECK VALVE ASSEMBLY |
| 7 | 102 | PLASTIC COVER |
| 102 GC | SS GASKETED COVER | |
| 7A | 1102-1 | COVER SCREW |
| 8 | 8 | POLYETHYLENE INJECTION NOZZLE |
| 9 | 9 | POLYETHYLENE FOOT VALVE |
| 9F | 006-5 | GREASE FITTING |
| 9I | 006 | GREASE RELIEF FITTING |
| 10 | 08-4 | 1/4-20 BUTTON HEAD SCREW (3 REQUIRED) |
| A | 090 | SLIDE |
| B | 098 | SLIDE PIN |
| C | 099 | STROKE ADJUSTMENT SCREW & LOCKNUT |
| D | 3L06 | DRIVE BEARING |
| E | 101-1 | 1/8" X 1" ROLLED PIN |
| F | 101 | DRIVE BEARING SUPPORT CAM |
| G | 312 | OILITE SUPPORT BUSHING |
| H | 500 | OILITE PISTON BUSHING |
| J* | 07-SS | V-7 STAINLESS STEEL PISTON |
| K* | 012-3 (V-7) | V-7 PACKING SET |
| L | 13 | PACKING RETAINER WASHER |
| M | M | PACKING LOAD SPRING |
| O | 017-4 | GREASE GLAND |
| U | 02-5 | 303SS CHECK VALVE BODY |
| V | 002-7 | BALL CHECK RETAINER SPRING |
| X | 002-5 | 3/8" DIAMETER 316SS BALL CHECK |
| Z | 50-9 | 3/8" NPT X 3/8" OD POLY TUBING FITTING |
| 50-9 SS | 3/8" NPT X 3/8" OD 316SS TUBING FITTING | |
| Z1 | Z1 | MINI-PUMP WALL BRACKET |
| 3C | 3C | VITON "O" RING CAP SEAL |
| 3D | 3D | V-7 END CAP |
| 3E | 3E | V-7 PACKING SPACER SLEEVE |
* RECOMMENDED SPARE PARTS
