Water Meters, 2 inch, Cold
| Contact Head: | |
| Remote Totalizer: | |
| Signal Splitter: | |
| Pulse Divider: | PD-1 = Pulse Divider (Add $141.00) |
| Text Area: |
*Note: This product cannot be redeemed using rewards points.
FOR CURRENT DISCOUNTS, SEE TERMS OF SALE TAB (LEFT).
With few exceptions, you get free shipping on orders over $100.00, lower 48 States of the USA.
We accept Visa, MasterCard, American Express, Discover, and PayPal.
To Get Members Only Benefits, Click "Save Time On Your Next Visit" at Check Out.
Instant message me with your questions.
IF THIS PRODUCT IS NOT AVAILABLE FOR DIRECT PURCHASE, CLICK HERE TO CONTACT US FOR A QUOTATION
We will meet or beat anyone's price on Advantage Controls equipment.
NOTE FOR ABOVE: If you remove the contact head you cannot have the Remote Totalizer, the Signal Splitter, or the Pulse Divider.

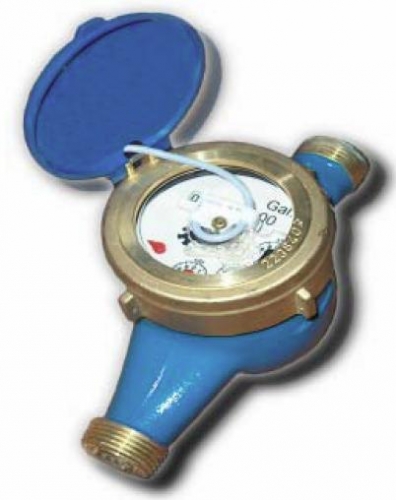

These water meters come in a variety of sizes and flow rates. They can have contacting heads or not. The contacting head water meters provide an electrical dry contact for proportional control based on water flow when used with a pulse activated timer or pump.
We also have Hall Effect paddle wheels (not shown) for applications where pipe diameter makes a water meter cost prohibitive. The water meters are typically tied in to a chemical feed timer or controller with built in timing circuits for controlling chemical feed proportional to make up. For low budget operations they can be tied into a programmable pump that is shown on the Pumps page.
The Optionss available from this page are:
Contact Head:
- G10 = 10 gallons per contact
- G100 = 100 gallons per contact
- A = No contact head
Remote Totalizer:
- No Remote Totalizer
- RCT-1 = Resetable
- RCT-1N = Non-Resetable
Signal Splitter:
- 1 Output
- AW-SP2 = Signal Splitter 2 Outputs
- AW-SP3 = Signal Splitter 3 Outputs
Pulse Divider:
- No Divider (Default)
- PD-1 = Pulse Divider
Other Accessories Available by Special Order:
- AW-RS Reed Switch for meter
- AW-RSM Reed Switch for Master Meter
- AW-2-GASKET Coupling gasket (pair)
These are cold water meters which are rated up to 105 degrees Fahrenheit and up to 150 psig. For information on hot water meters, on non-standard heads, on meters without contact heads, or on paddle wheel flow meters contact_us.
