Wingert Separators, Model XFT Series (1/2 inch TO 3 inch Flanged)

SKU: EQ0-SEPAR-XFT
Price:
Add to cart to see price

Size:
Legs/Bracket:
Clean Out:   2 inch FNPT coupling and plug (Add $150.00)
Text Area:
Qty: - +
   - OR -
*Note: This product is not eligible for rewards points earning.
*Note: This product cannot be redeemed using rewards points.

FOR CURRENT DISCOUNTS, SEE TERMS OF SALE TAB (LEFT).
With few exceptions, you get free shipping on orders over $100.00, lower 48 States of the USA.
We accept Visa, MasterCard, American Express, Discover, and
PayPal.

To Get Members Only Benefits, Click "Save Time On Your Next Visit" at Check Out.

Instant message me with your questions.

IF THIS PRODUCT IS NOT AVAILABLE FOR DIRECT PURCHASE, CLICK HERE TO CONTACT US FOR A QUOTATION

It's your reputation - specify the best.  The powerful technology of centrifugal force has been harnessed by man and utilized in the field of solid-liquid separation for over a century. Designed to take full advantage of this technology, Wingert Separators are a highly efficient solid-liquid separation tool. Our pride in producing high quality process equipment for water and wastewater treatment applications is inherent in the entire line of Wingert Separators.

How Do They Work?

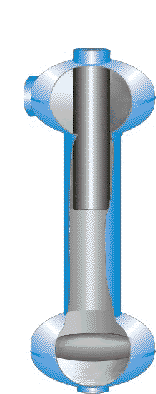

Systems influent passes through the Wingert Separator in a high velocity circular motion. Centrifugal force slings the particulates, sand, debris, and sludge outward to the separator wall and downward in a spiral motion. Gravitational force pulls the separated solid particles downward past the spin trap plate into the solids holding chamber. Cleansed effluent then rises through the vortex locator and returns back to the system. The Wingert Separator has no screens, slotted baffles, moving parts or filter media to cause unnecessary pressure loss or use of large volumes of backwash water. No maintenance is required, however periodic opening of the purge valve is necessary to dispose of unwanted solids. Purging can be done manually or automatically through the use of a Wingert Purge Package.

LINE
SIZE
MODELFLOW RANGEOVERALL
LENGTH
OVERALL
DIAMETER
APPROXIMATE
WEIGHT
DRAIN
SIZE
“XFT” SERIES SEPARATORS (1/2” TO 3” FLANGED)
1/2” XFT-0050 8 - 14 GPM 25 7/16” 6” 20 LBS. 3/4”
3/4” XFT-0075 14 - 25 GPM 25 1/2” 6” 24 LBS. 3/4”
1” XFT-0100 28 - 49 GPM 25 1/2” 6” 26 LBS. 3/4”
1 1/4” XFT-0125 28 - 49 GPM 33” 6” 30 LBS. 3/4”
1 1/2” XFT-0150 67 - 115 GPM 33” 6” 31 LBS. 3/4”
2” XFT-0200* 90 - 157 GPM 37 1/4” 10” 57 LBS. 1 1/2”
2 1/2” XFT-0250* 129 - 224 GPM 37 1/4” 10” 66 LBS. 1 1/2”
3” XFT-0300* 205 - 355 GPM 35 1/2” 10” 85 LBS. 1 1/2”
* Optional legs or wall mount brackets are recommended - SEE BELOW


REMOVABLE LEGS AND BRACKET MOUNTS (“XTI”, “XFT” & “XGD” SERIES SEPARATORS)
PARTDESCRIPTION
RL-06 6” diameter body, removable leg assembly for 1/2” – 2 1/2” separator
RL-10 10” diameter body, removable leg assembly for 3” separator
BM-0050 Wall mounting bracket assembly for 1/2” separator
BM-0075 Wall mounting bracket assembly for 3/4” separator
BM-0100 Wall mounting bracket assembly for 1” separator
BM-0125 Wall mounting bracket assembly for 1 1/4” separator
BM-0150 Wall mounting bracket assembly for 1 1/2” separator
BM-0200 Wall mounting bracket assembly for 2” separator
BM-0250 Wall mounting bracket assembly for 2 1/2” separator
BM-0300 Wall mounting bracket assembly for 3” separator


To view or download a Separator Model Selection Chart, Click Here.

Features

  • Flow rates from 8 - 13,000 GPM
  • Model sizes ranging from 1/2" - 20"
  • 150 psi at 200° F max (1055 kPa at 93° C), higher ratings
         available
  • 150 lb. ANSI RF/SO flanged or National Pipe Thread,
         others available upon request
  • Carbon steel or stainless steel, consult factory for other
         requirements
  • No routine maintenance or parts replacement, simple
         periodic solids purging only
  • Up to 80% less space required than conventional
         filtration equipment
  • Selection, sizing, custom designs and systems and installation
         guidance available
  • Options:
        - Space saving designs
        - High temperature and pressure
        - Special coatings
        - Low profile (4” - 20” models)
        - Wall mounting brackets (½” - 3” models)
        - Removable legs (½” - 3” models)
        - Clean-out (4” x 6” door / 2” FNPT plug)
        - Internal inspection access
        - Removable purge chamber
        - Automatic, manual & continuous purge packages
Performance
Wingert Separators can remove up to 98% of the particles which are 363 mesh / 40 micron, and 1.8 specific gravity or greater.  Particles with less than 1.8 specific gravity and smaller than 40 microns may be removed with greater effectiveness from liquids with a specific gravity less than water.

Solid/Liquid Criteria Range
Particle Size:
> 40 micron up to 1 3/4”, consult factory for other requirements
Pressure Drop:
Minimum 4 psi with little to no fluctuations
Flow Range:
8 gpm to 13,953 gpm - higher & variable flow rates possible through manifolding
Fluid Loss:
Minimal fluid loss achieved with continuous recovery system
PARTICLE SIZE EQUIVALENT
MICRONS US STD. MESH INCHES
15 800 .0006
37 400 .0015
44 325 .0017
53 270 .0021
62 230 .0024
74 200 .0029
88 170 .0035
105 140 .0041
125 120 .0049
NOTE: Lower limit for naked eye = 40 microns
SPECIFIC GRAVITY REFERENCE: Aluminum (2.7), Antimony (6.6), Barium (3.7), Bismuth (9.7), Boron (2.5), Brass (9.0), Cadmium (8.6), Carbon-Amorphous (1.8 - 1.9), Coal-Anthrocite (1.3 - 1.9), Copper (8.9), Glass-Crystal (3.0), Gold (19.3), Granite (2.5 - 3.0), Gypsum (2.4), Iron (7.9), Lead (11.4), Limestone-CaCO3 (2.8), Manganese (7.3), Molybdenum (10.2) Nickel (8.9), Platinum (21.4), Sand-Quartz (2.6 - 2.8), Sandstone (2.3), Silver (10.5), Soapstone (2.7), Steel (7.8), Tantalum (16.6), Tellurium (6.25), Tin Ore (7.1), Titanium (4.5), Tungsten (19.1), Vanadium (5.8), Zinc (7.1)
